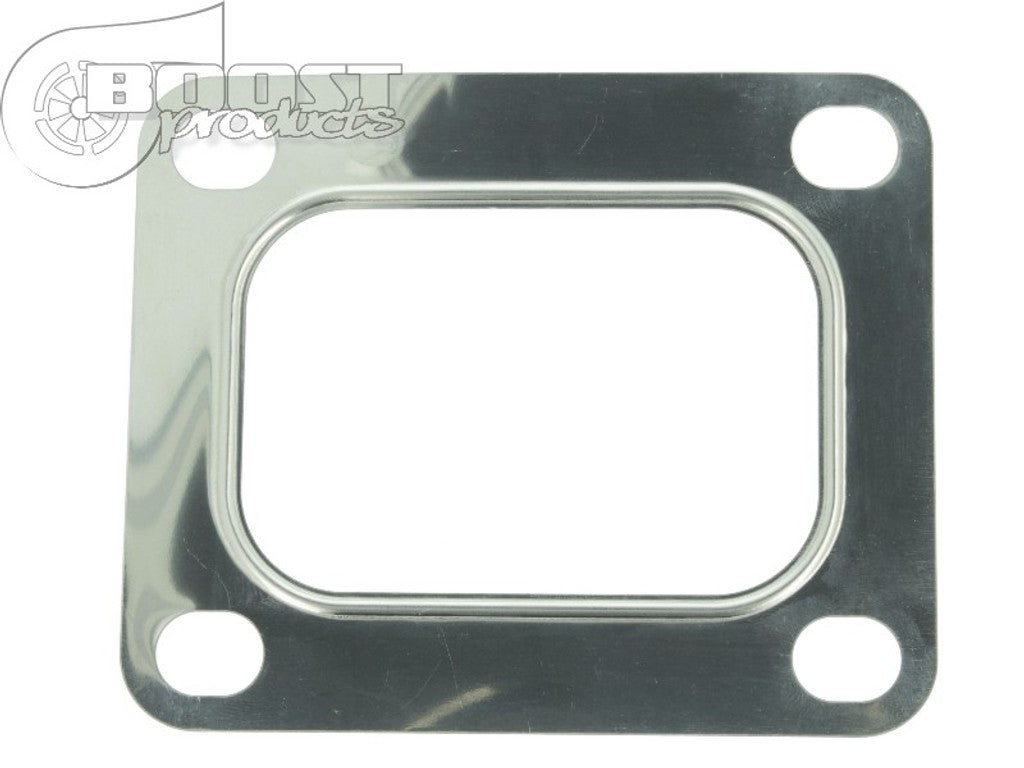

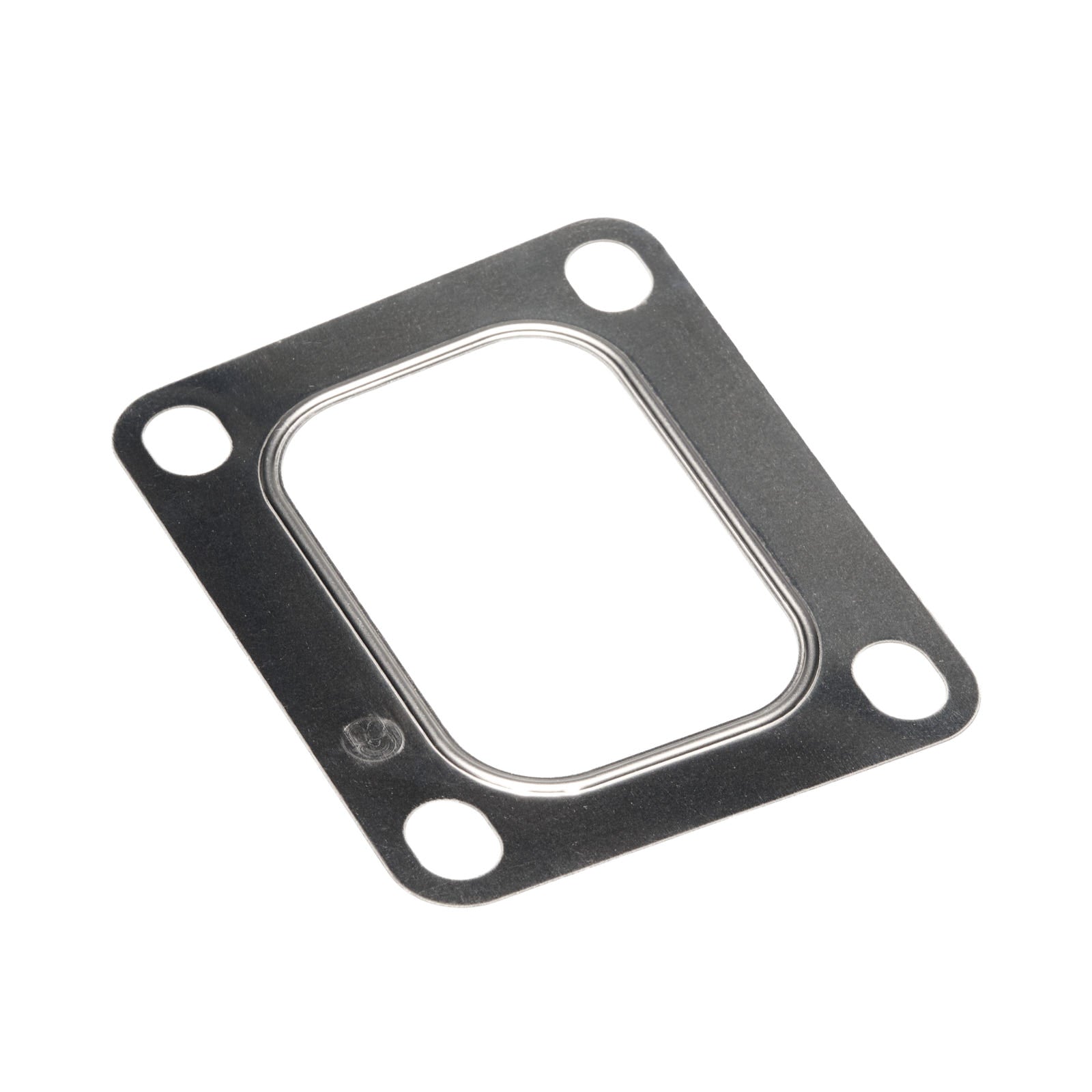

Manifold Gasket T4 / GT4X

high quality Turbo metal gasket

Gasket between Manifold and Turbocharger

This is a punched stainless steel Gasket. Due to the imprint the sealing surface originates exactly in the needed position. Please notice that with every assembling and disassembling a new gasket is needed.

Material: stainless steel
Overall Size: 114mm x 96mm
diameter cut out: not specified
Bore distance: 83mm x 70mm

Fits with:
Turbocharger T4X / GT4X

Garrett T4, T04
Garrett GT40, GT42, GT45, GT47
Garrett GT4082
Garrett GT4088
Garrett GT4708, GT4780
Garrett GT4718, GT4788
Garrett GT40R, GT4088R
Garrett GT40/42R, GT4042R, GT4094R
Garrett GT45R, GT4508R
Garrett GT47R, GT4780R, GT4708R
Garrett GT47R, GT4788R, GT4718R
