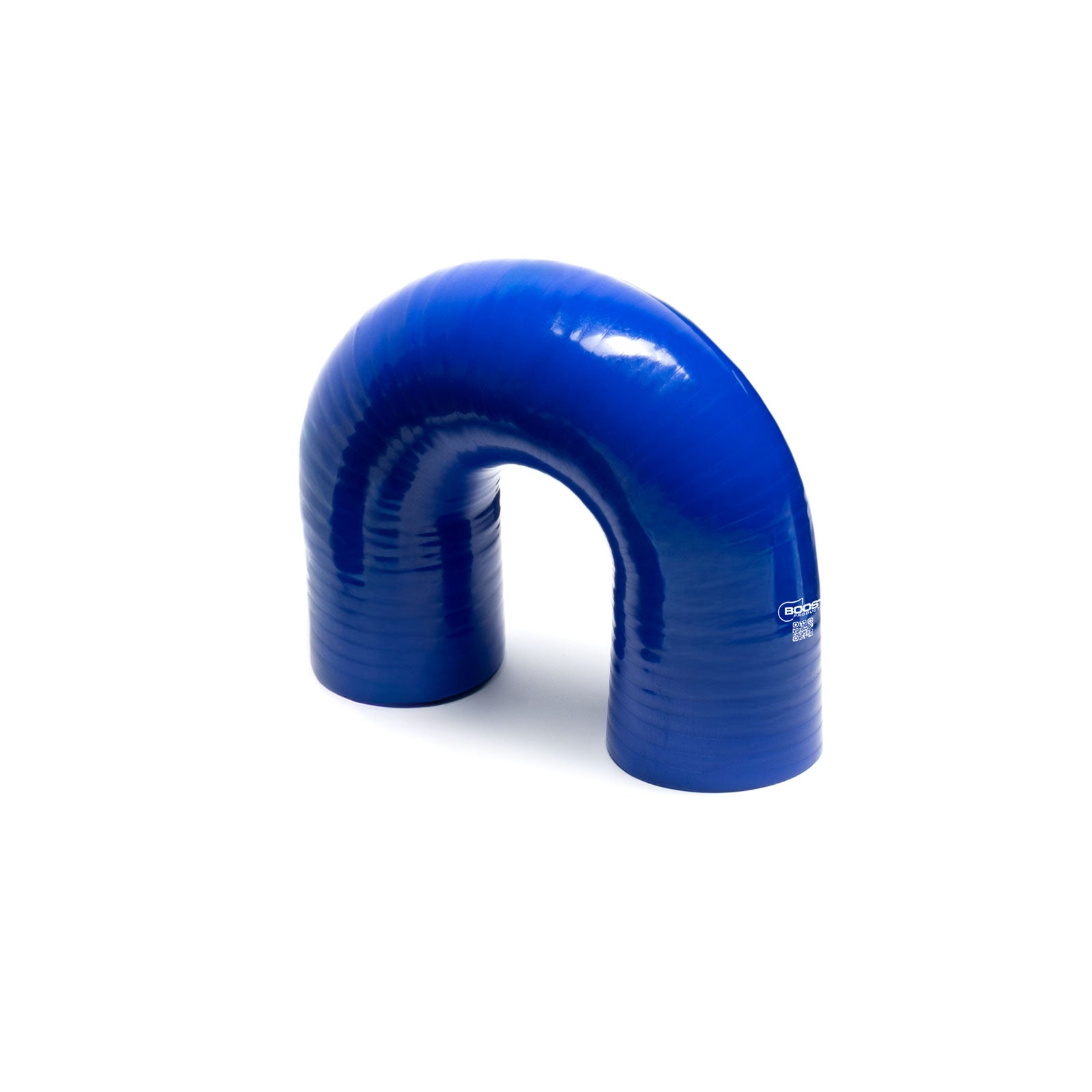

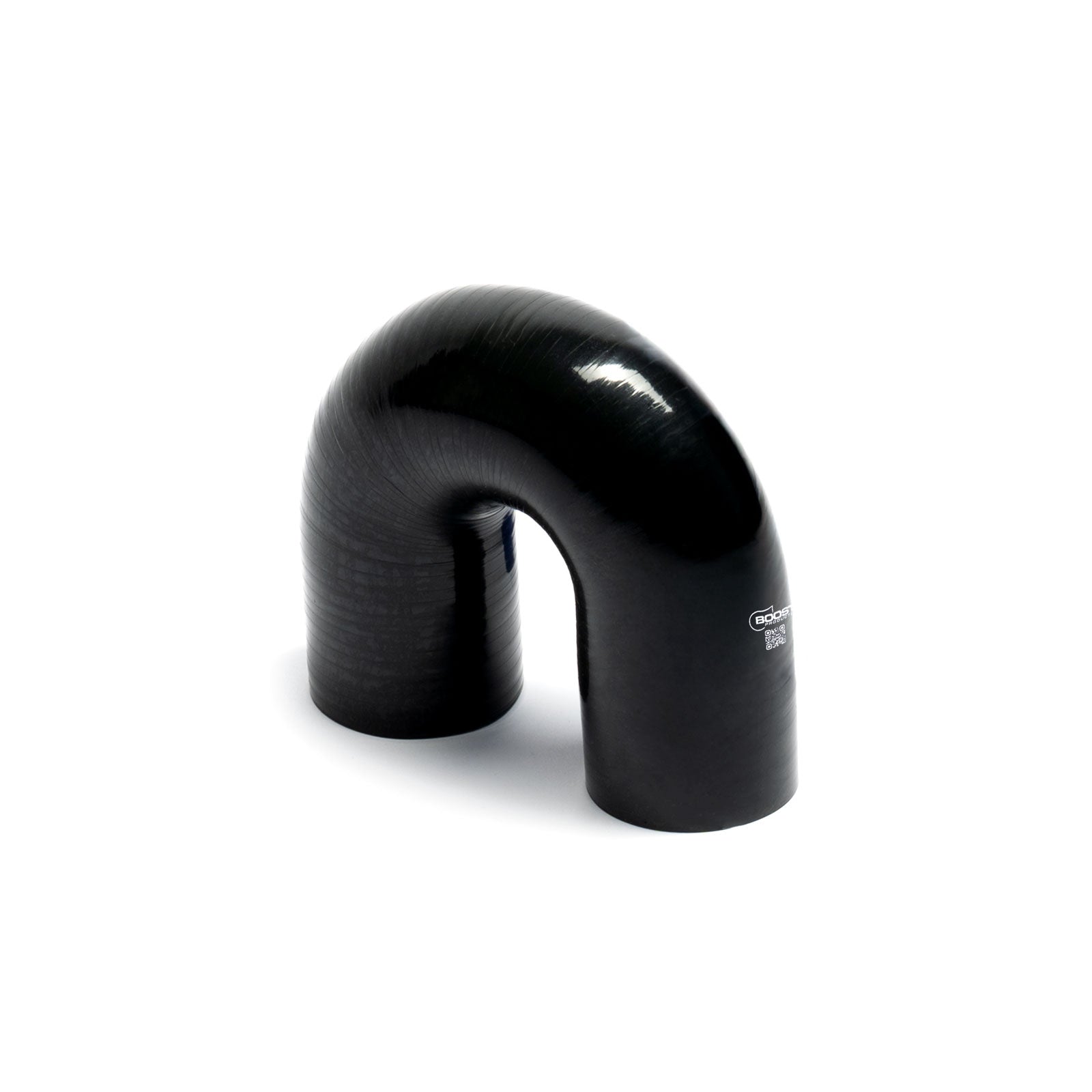

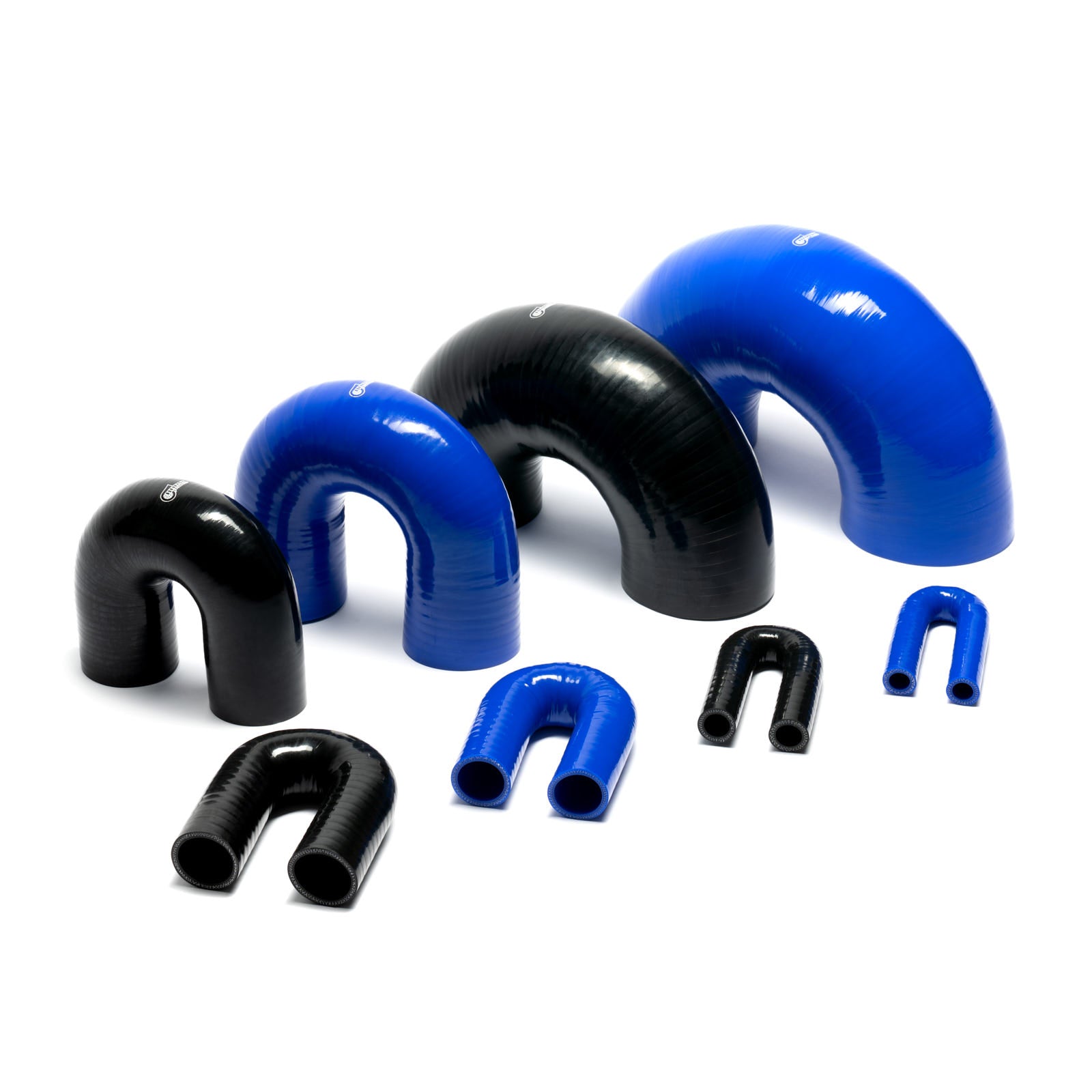

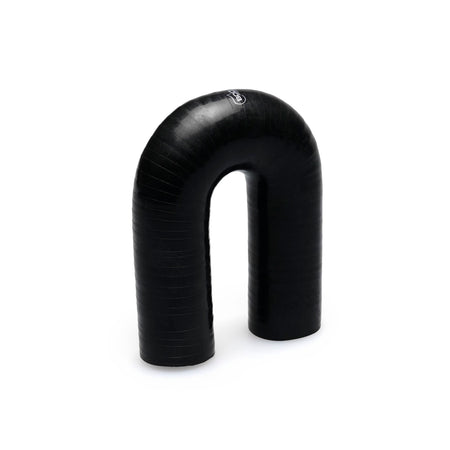

BOOST Products Silicone Elbow 180 degree

BOOST Products Silicone Elbow 180 degree

Item No.: 3256000080

This BOOST Products Silicone Hose is reinforced with textile layers to be extreme pressure resistant and also to vacuum in your Air Charge System. These Hoses are suitable for your Intercooler system, Intake system, Water lines or similar. They can withstand up to 5 Bar and temperatures up to 220 C. They are not to be used as Fuel or Oil line!
After many tests we deliver best quality at the best price! The BOOST Products silicone hoses have achieved and many times even exceeded the quality of silicone hoses compared to ones made by well known manufacturers in quality tests. This silicone is durable and flexible, stable and color-proof after many years. Lots of well known company's in the tuning and motorsport areas rely on silicone hoses made by BOOST Products.
The hoses have until 38mm 3 layers of fabric and 4,3mm wall thickness. From 41mm there are 4 layers and 5,3mm wall thickness. They come with a small subtle BOOST Products logo which proofs the silicone hoses' quality.

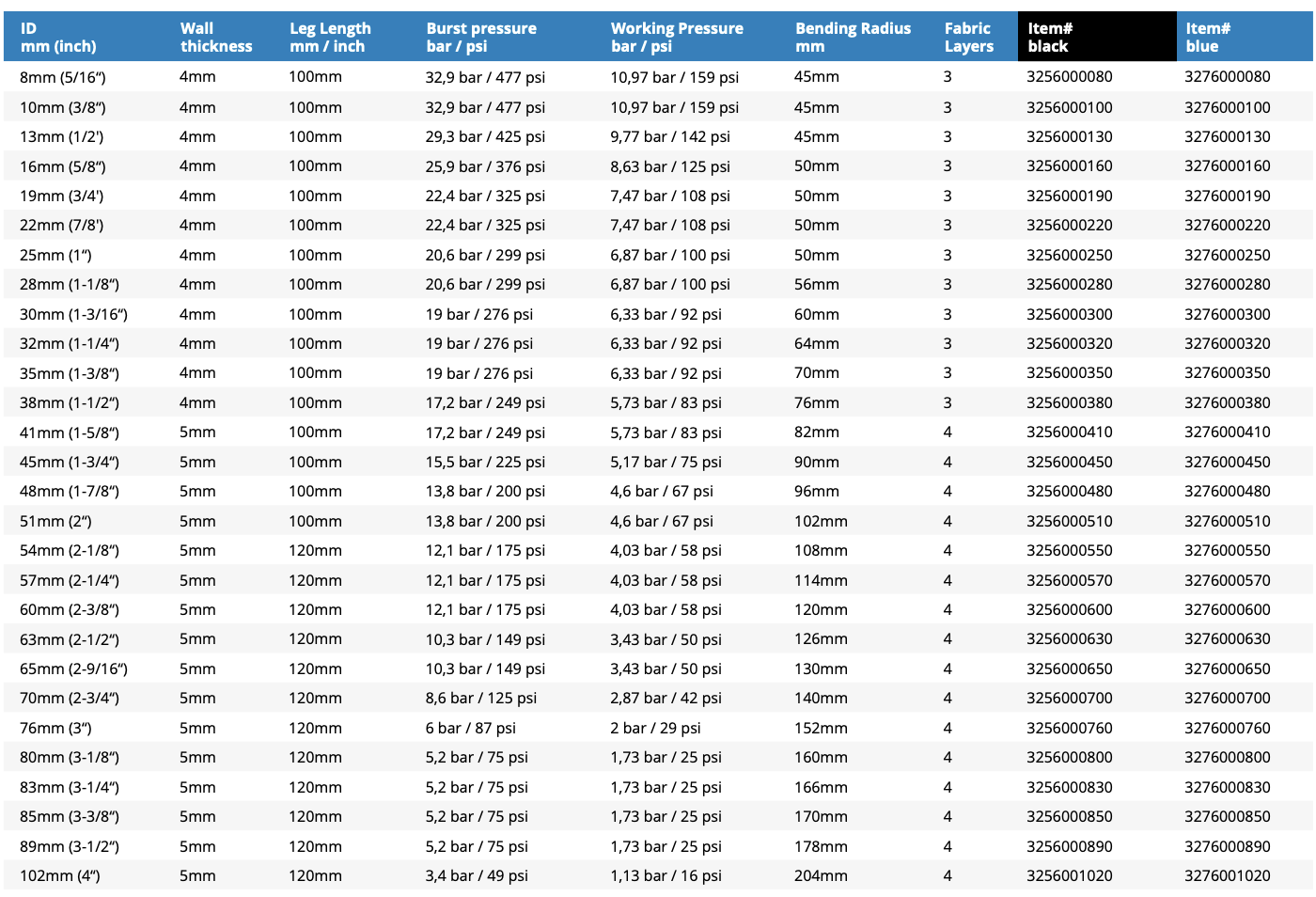

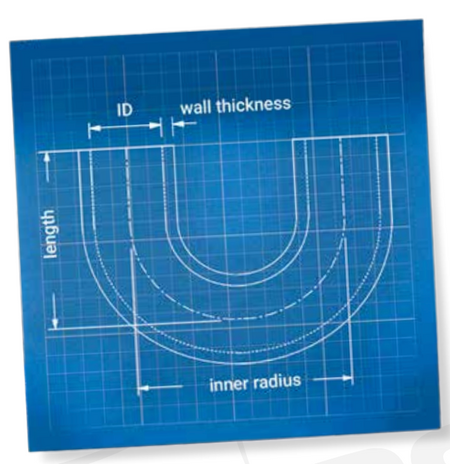

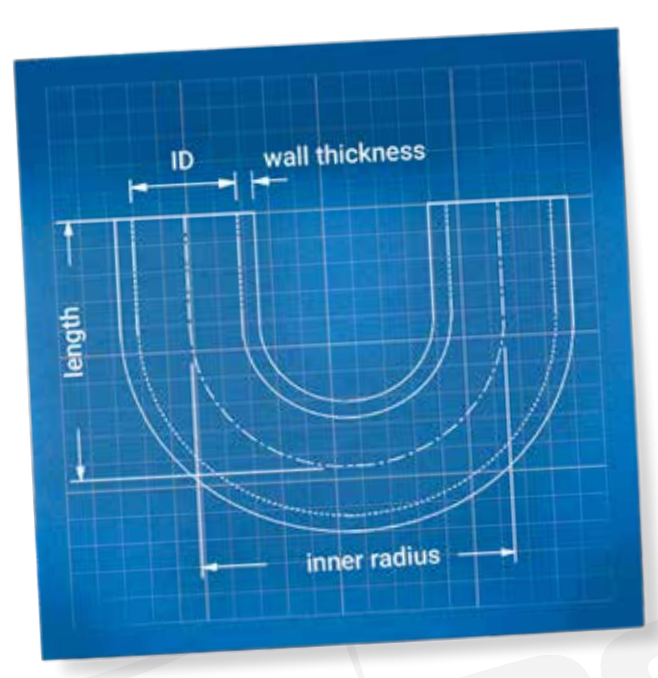

Size Chart / 180 Elbow Hose
ID (mm) Wall (mm) Leg (mm) Center Distance (mm) Min Burst (Bar) Max Working (Bar) Textile Layer
8 4 100 16 32,90 10,97 3
10 4 100 20 32,90 10,97 3
13 4 100 26 29,30 9,77 3
16 4 100 32 25,90 8,63 3
19 4 100 38 22,40 7,47 3
22 4 100 44 22,40 7,47 3
25 4 100 50 20,60 6,87 3
28 4 100 56 20,60 6,87 3
30 4 100 60 19,00 6,33 3
32 4 100 64 19,00 6,33 3
35 4 100 70 19,00 6,33 3
38 4 100 76 17,20 5,73 3
41 5 100 82 17,20 5,73 4
45 5 100 90 15,50 5,17 4
48 5 100 96 13,80 4,60 4
51 5 100 102 13,80 4,60 4
54 5 120 108 12,10 4,03 4
57 5 120 114 12,10 4,03 4
60 5 120 120 12,10 4,03 4
63 5 120 126 10,30 3,43 4
65 5 120 130 10,30 3,43 4
70 5 120 140 8,60 2,87 4
76 5 120 152 6,00 2,00 4
80 5 120 160 5,20 1,73 4
83 5 120 166 5,20 1,73 4
85 5 120 170 5,20 1,73 4
89 5 120 178 5,20 1,73 4
102 5 120 204 3,40 1,13 4


What you should consider with Silicone

- The diameter refers to the Inner diameter
- When choosing the clamp take the Wall Thickness x2 for the right Size
- Silicone Hoses are 1-3mm elastic
- If you can't find the right size, choose the smaller one which is available

View full details
✅ In stock: 5 items available
Variant Variant total Quantity Price Variant total

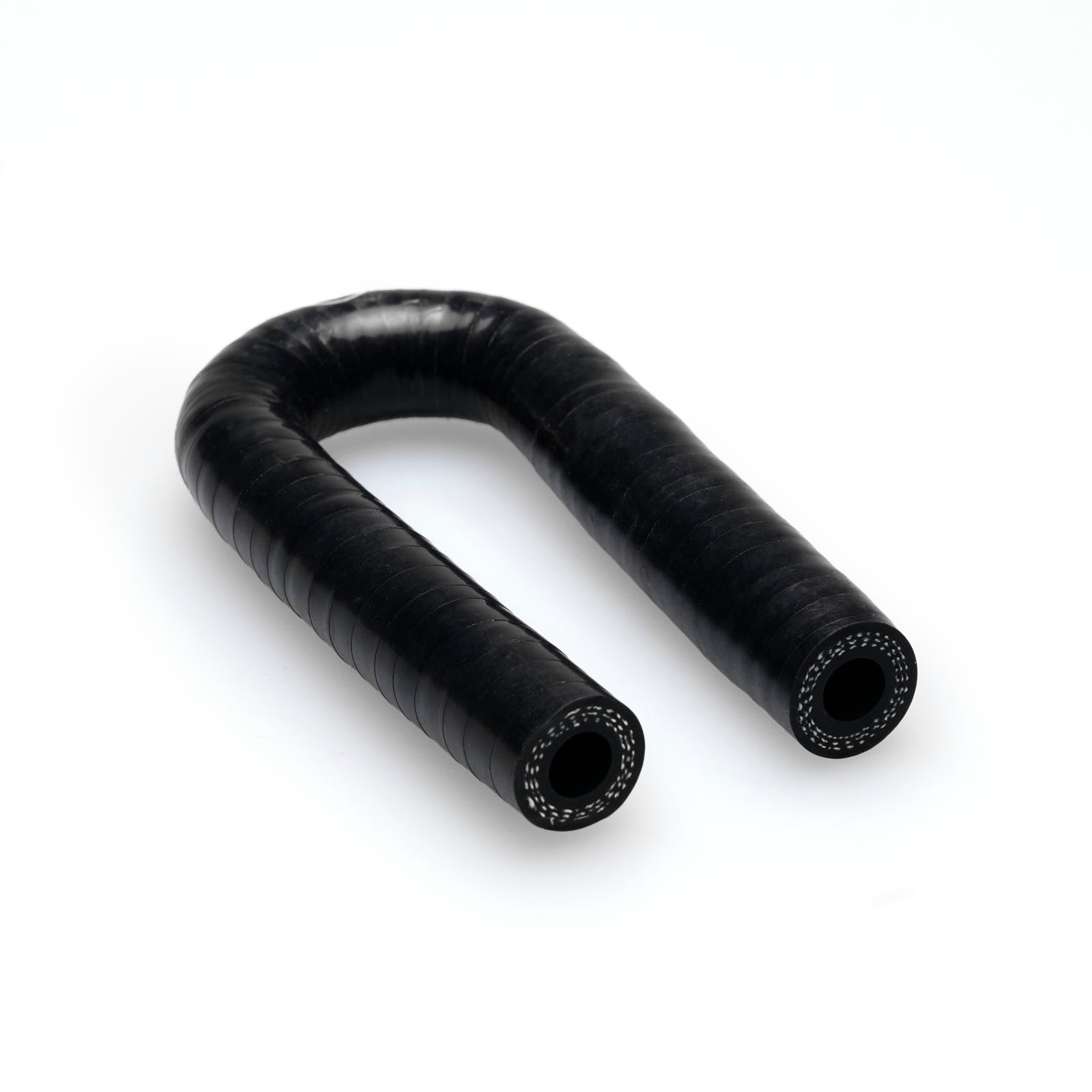

8mm (0.325"), black3256000080
In stock: 5
8mm (0.325"), black3256000080
In stock: 5
$6.67		 $0.00
$6.67 $0.00
8mm (0.325"), blue3276000080
In stock: 10
8mm (0.325"), blue3276000080
In stock: 10
$6.92		 $0.00
$6.92 $0.00
10mm (0.4"), black3256000100
In stock: 2
10mm (0.4"), black3256000100
In stock: 2
$8.88		 $0.00
$8.88 $0.00
10mm (0.4"), blue3276000100
In stock: 5
10mm (0.4"), blue3276000100
In stock: 5
$9.24		 $0.00
$9.24 $0.00
13mm (0.5"), black3256000130
In stock: 13
13mm (0.5"), black3256000130
In stock: 13
$10.96		 $0.00
$10.96 $0.00
13mm (0.5"), blue3276000130
In stock: 9
13mm (0.5"), blue3276000130
In stock: 9
$11.38		 $0.00
$11.38 $0.00

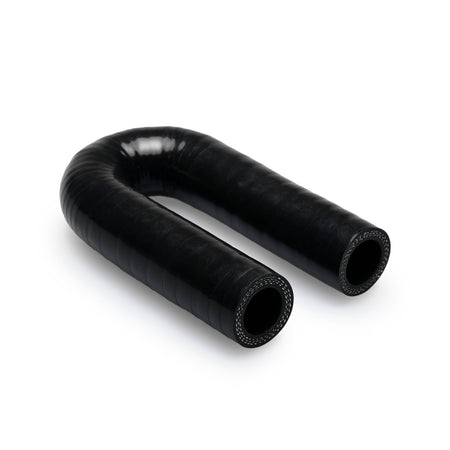

16mm (0.625"), black3256000160
In stock: 4
16mm (0.625"), black3256000160
In stock: 4
$13.34		 $0.00
$13.34 $0.00
16mm (0.625"), blue3276000160
In stock: 8
16mm (0.625"), blue3276000160
In stock: 8
$13.83		 $0.00
$13.83 $0.00
19mm (0.75"), black3256000190
Available on backorder
19mm (0.75"), black3256000190
Available on backorder
$15.85		 $0.00
$15.85 $0.00
19mm (0.75"), blue3276000190
In stock: 10
19mm (0.75"), blue3276000190
In stock: 10
$16.27		 $0.00
$16.27 $0.00
22mm (0.875"), black3256000220
In stock: 18
22mm (0.875"), black3256000220
In stock: 18
$18.42		 $0.00
$18.42 $0.00
22mm (0.875"), blue3276000220
In stock: 7
22mm (0.875"), blue3276000220
In stock: 7
$18.79		 $0.00
$18.79 $0.00
25mm (1.0"), black3256000250
In stock: 3
25mm (1.0"), black3256000250
In stock: 3
$20.56		 $0.00
$20.56 $0.00
25mm (1.0"), blue3276000250
In stock: 5
25mm (1.0"), blue3276000250
In stock: 5
$20.99		 $0.00
$20.99 $0.00
28mm (1.1"), black3256000280
In stock: 7
28mm (1.1"), black3256000280
In stock: 7
$24.10		 $0.00
$24.10 $0.00
28mm (1.1"), blue3276000280
In stock: 5
28mm (1.1"), blue3276000280
In stock: 5
$24.59		 $0.00
$24.59 $0.00
30mm (1.175"), black3256000300
In stock: 3
30mm (1.175"), black3256000300
In stock: 3
$26.18		 $0.00
$26.18 $0.00
30mm (1.175"), blue3276000300
In stock: 5
30mm (1.175"), blue3276000300
In stock: 5
$26.67		 $0.00
$26.67 $0.00
32mm (1.25"), black3256000320
In stock: 3
32mm (1.25"), black3256000320
In stock: 3
$27.47		 $0.00
$27.47 $0.00
32mm (1.25"), blue3276000320
In stock: 5
32mm (1.25"), blue3276000320
In stock: 5
$27.72		 $0.00
$27.72 $0.00
35mm (1.375"), black3256000350
In stock: 4
35mm (1.375"), black3256000350
In stock: 4
$25.82		 $0.00
$25.82 $0.00
35mm (1.375"), blue3276000350
In stock: 10
35mm (1.375"), blue3276000350
In stock: 10
$29.92		 $0.00
$29.92 $0.00
38mm (1.5"), black3256000380
Available on backorder
38mm (1.5"), black3256000380
Available on backorder
$31.69		 $0.00
$31.69 $0.00
38mm (1.5"), blue3276000380
In stock: 13
38mm (1.5"), blue3276000380
In stock: 13
$32.00		 $0.00
$32.00 $0.00
41mm (1.625"), black3256000410
In stock: 4
41mm (1.625"), black3256000410
In stock: 4
$33.96		 $0.00
$33.96 $0.00
41mm (1.625"), blue3276000410
In stock: 10
41mm (1.625"), blue3276000410
In stock: 10
$29.82		 $0.00
$29.82 $0.00
45mm (1.775"), black3256000450
In stock: 4
45mm (1.775"), black3256000450
In stock: 4
$36.46		 $0.00
$36.46 $0.00
45mm (1.775"), blue3276000450
In stock: 9
45mm (1.775"), blue3276000450
In stock: 9
$36.09		 $0.00
$36.09 $0.00
48mm (1.9"), black3256000480
In stock: 8
48mm (1.9"), black3256000480
In stock: 8
$38.66		 $0.00
$38.66 $0.00
48mm (1.9"), blue3276000480
In stock: 5
48mm (1.9"), blue3276000480
In stock: 5
$38.30		 $0.00
$38.30 $0.00
51mm (2.0"), black3256000510
In stock: 11
51mm (2.0"), black3256000510
In stock: 11
$40.62		 $0.00
$40.62 $0.00
51mm (2.0"), blue3276000510
In stock: 7
51mm (2.0"), blue3276000510
In stock: 7
$40.25		 $0.00
$40.25 $0.00

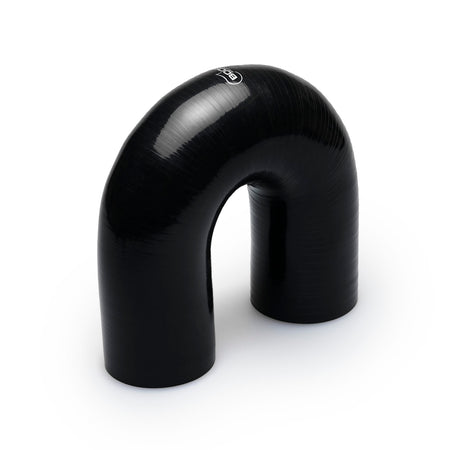

55mm (2.175"), black3256000550
In stock: 11
55mm (2.175"), black3256000550
In stock: 11
$42.82		 $0.00
$42.82 $0.00
55mm (2.175"), blue3276000550
In stock: 10
55mm (2.175"), blue3276000550
In stock: 10
$42.40		 $0.00
$42.40 $0.00
57mm (2.25"), black3256000570
In stock: 6
57mm (2.25"), black3256000570
In stock: 6
$45.64		 $0.00
$45.64 $0.00
57mm (2.25"), blue3276000570
In stock: 5
57mm (2.25"), blue3276000570
In stock: 5
$44.72		 $0.00
$44.72 $0.00
60mm (2.36"), black3256000600
In stock: 9
60mm (2.36"), black3256000600
In stock: 9
$47.78		 $0.00
$47.78 $0.00
60mm (2.36"), blue3276000600
In stock: 10
60mm (2.36"), blue3276000600
In stock: 10
$46.80		 $0.00
$46.80 $0.00
63.5mm (2.5"), black3256000630
In stock: 11
63.5mm (2.5"), black3256000630
In stock: 11
$49.99		 $0.00
$49.99 $0.00
63.5mm (2.5"), blue3276000630
In stock: 8
63.5mm (2.5"), blue3276000630
In stock: 8
$49.01		 $0.00
$49.01 $0.00
65mm (2.55"), black3256000650
In stock: 10
65mm (2.55"), black3256000650
In stock: 10
$52.43		 $0.00
$52.43 $0.00
65mm (2.55"), blue3276000650
In stock: 5
65mm (2.55"), blue3276000650
In stock: 5
$51.39		 $0.00
$51.39 $0.00
70mm (2.75"), black3256000700
In stock: 8
70mm (2.75"), black3256000700
In stock: 8
$55.18		 $0.00
$55.18 $0.00
70mm (2.75"), blue3276000700
In stock: 5
70mm (2.75"), blue3276000700
In stock: 5
$53.17		 $0.00
$53.17 $0.00

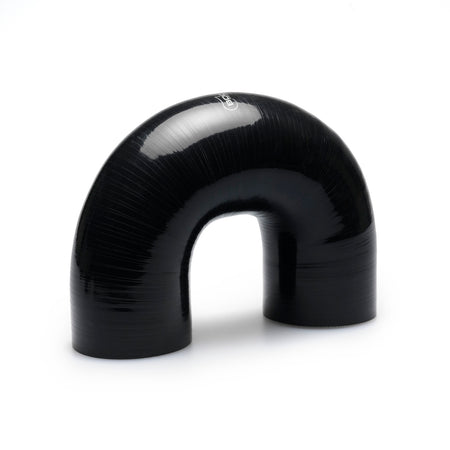

76mm (3.0"), black3256000760
In stock: 3
76mm (3.0"), black3256000760
In stock: 3
$59.53		 $0.00
$59.53 $0.00
76mm (3.0"), blue3276000760
In stock: 5
76mm (3.0"), blue3276000760
In stock: 5
$57.38		 $0.00
$57.38 $0.00
80mm (3.15"), black3256000800
In stock: 6
80mm (3.15"), black3256000800
In stock: 6
$65.04		 $0.00
$65.04 $0.00
80mm (3.15"), blue3276000800
In stock: 6
80mm (3.15"), blue3276000800
In stock: 6
$62.71		 $0.00
$62.71 $0.00
83mm (3.25"), black3256000830
In stock: 5
83mm (3.25"), black3256000830
In stock: 5
$67.24		 $0.00
$67.24 $0.00
83mm (3.25"), blue3276000830
In stock: 5
83mm (3.25"), blue3276000830
In stock: 5
$56.38		 $0.00
$56.38 $0.00
85mm (3.35"), black3256000850
In stock: 10
85mm (3.35"), black3256000850
In stock: 10
$70.91		 $0.00
$70.91 $0.00
85mm (3.35"), blue3276000850
In stock: 5
85mm (3.35"), blue3276000850
In stock: 5
$59.46		 $0.00
$59.46 $0.00

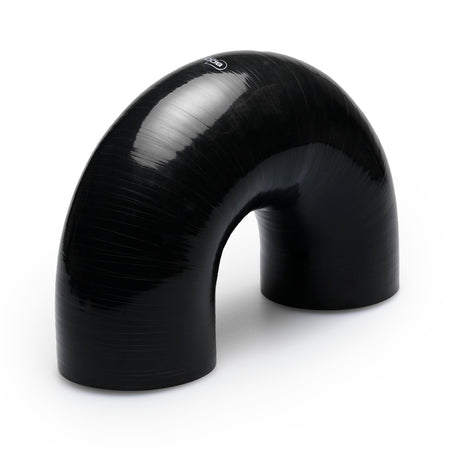

89mm (3.5"), black3256000890
In stock: 3
89mm (3.5"), black3256000890
In stock: 3
$74.33		 $0.00
$74.33 $0.00
89mm (3.5"), blue3276000890
In stock: 10
89mm (3.5"), blue3276000890
In stock: 10
$74.33		 $0.00
$74.33 $0.00
102mm (4.0"), black3256001020
In stock: 7
102mm (4.0"), black3256001020
In stock: 7
$89.07		 $0.00
$89.07 $0.00
102mm (4.0"), blue3276001020
In stock: 9
102mm (4.0"), blue3276001020
In stock: 9
$89.07		 $0.00
$89.07 $0.00
