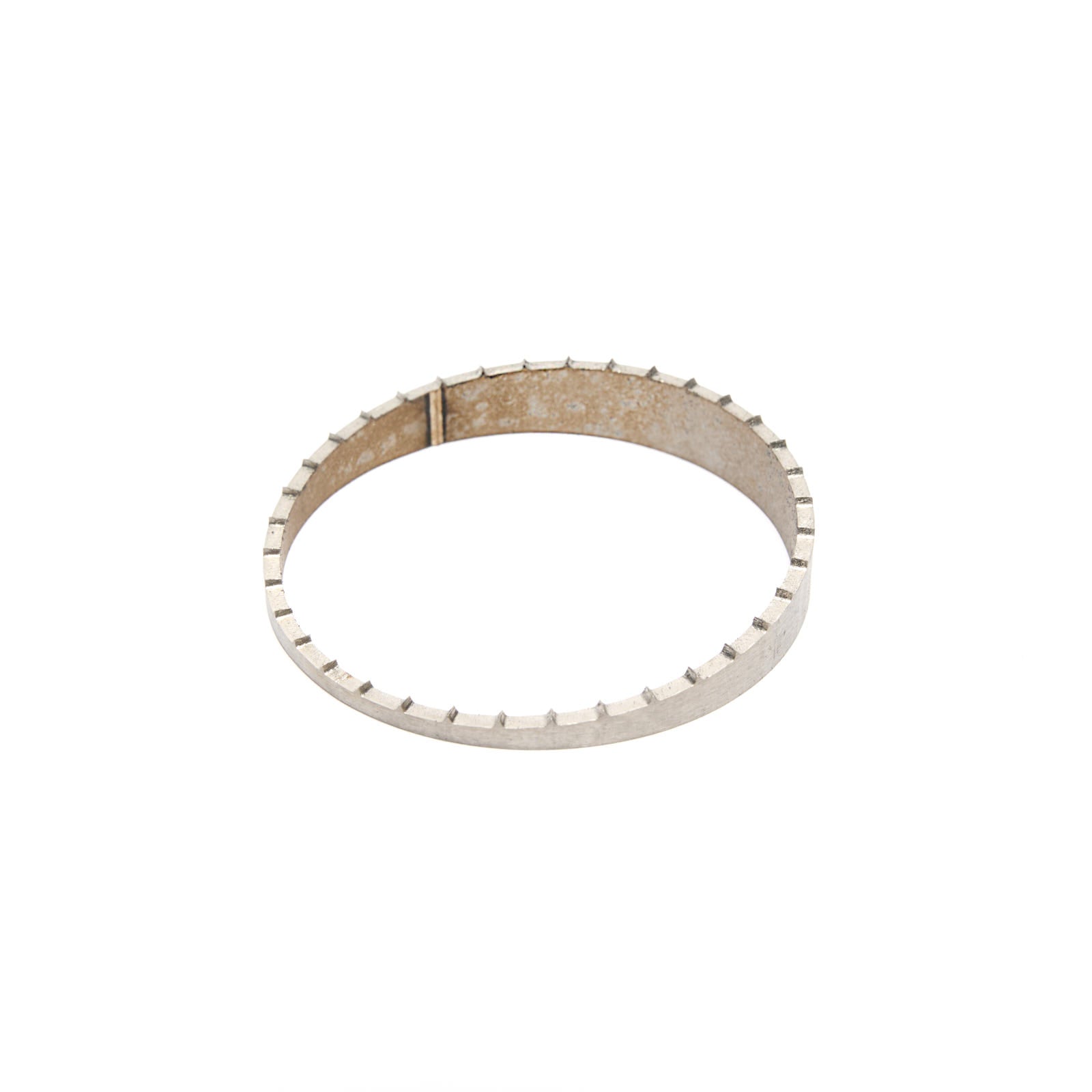

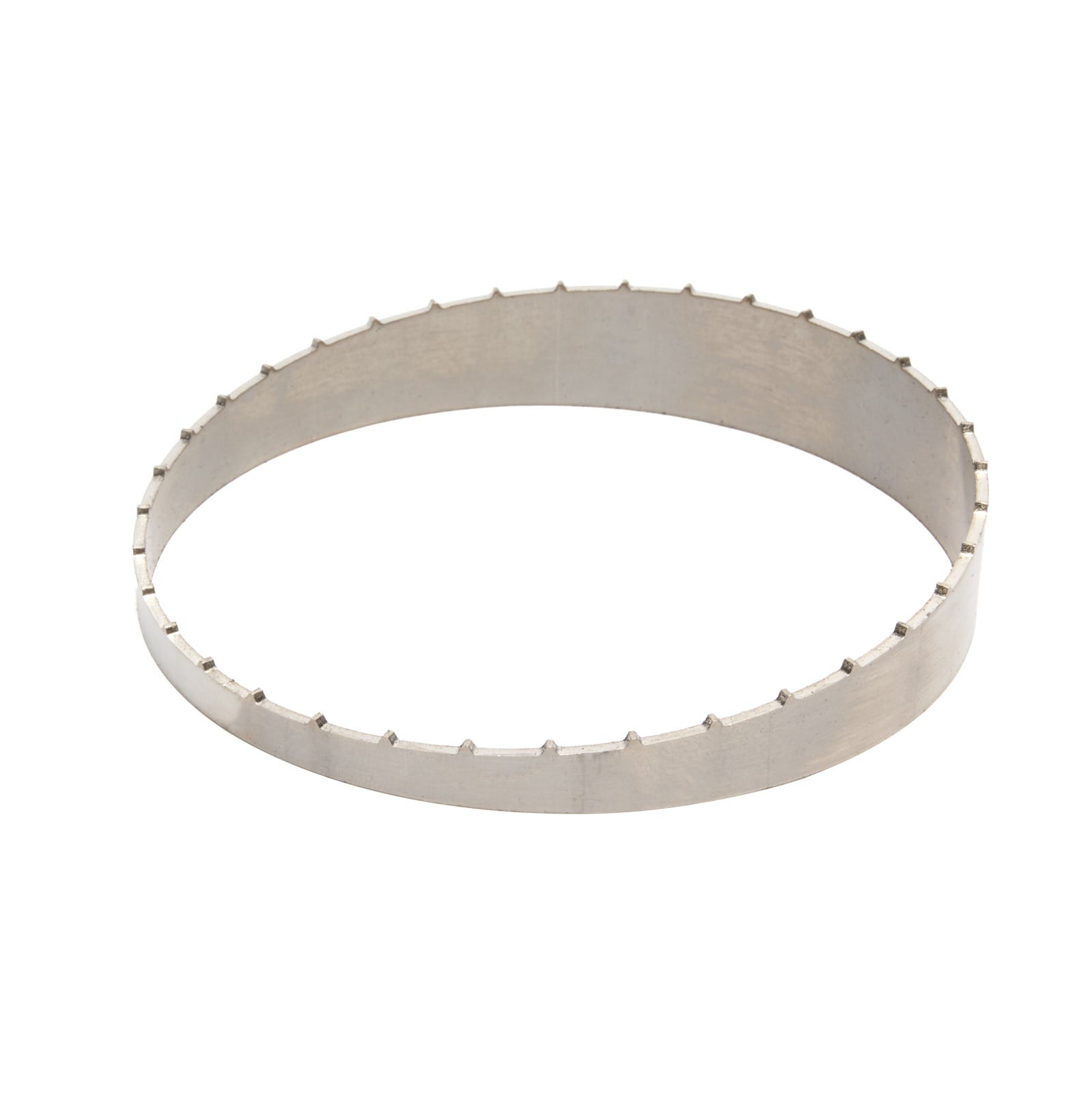

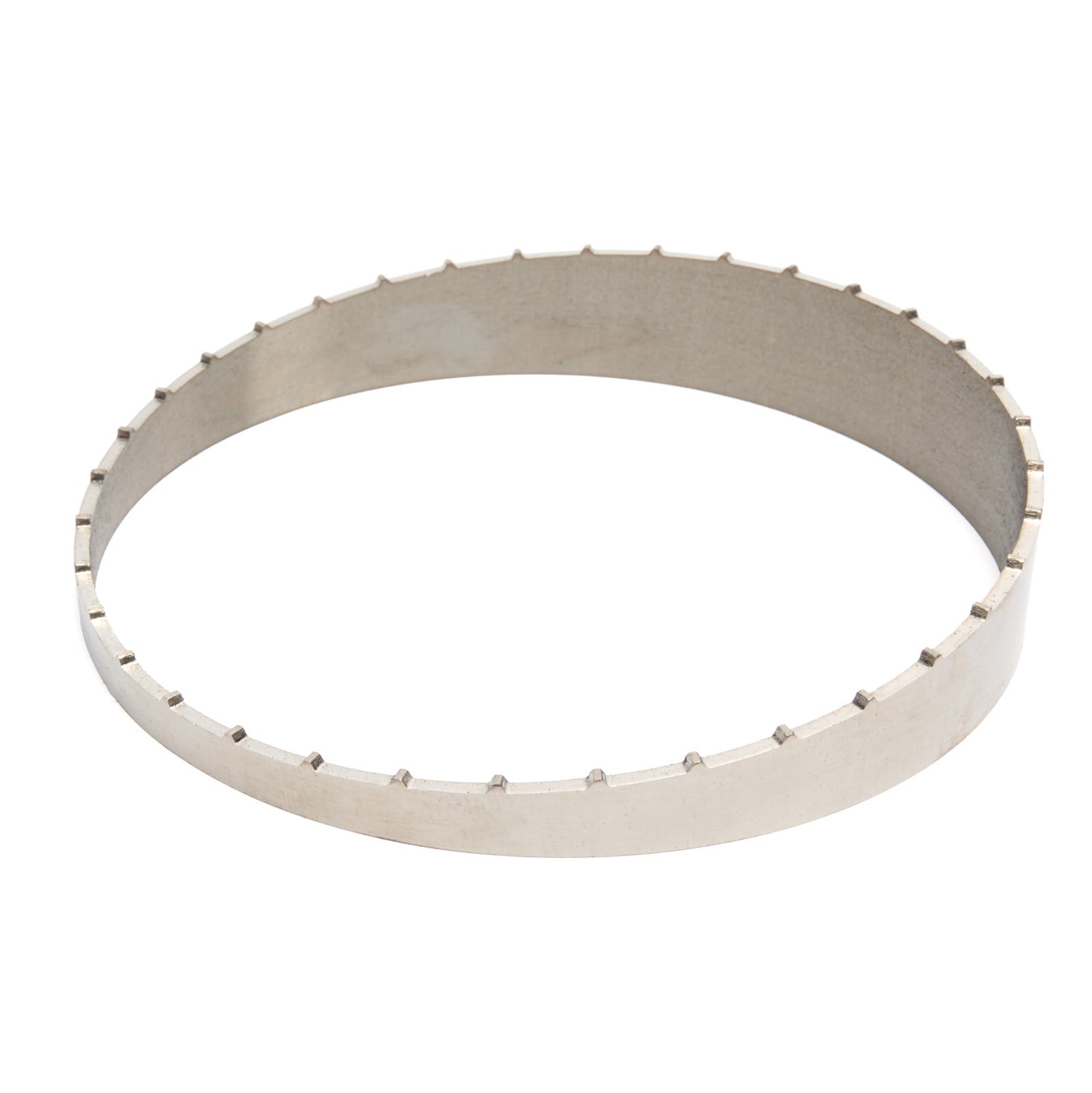

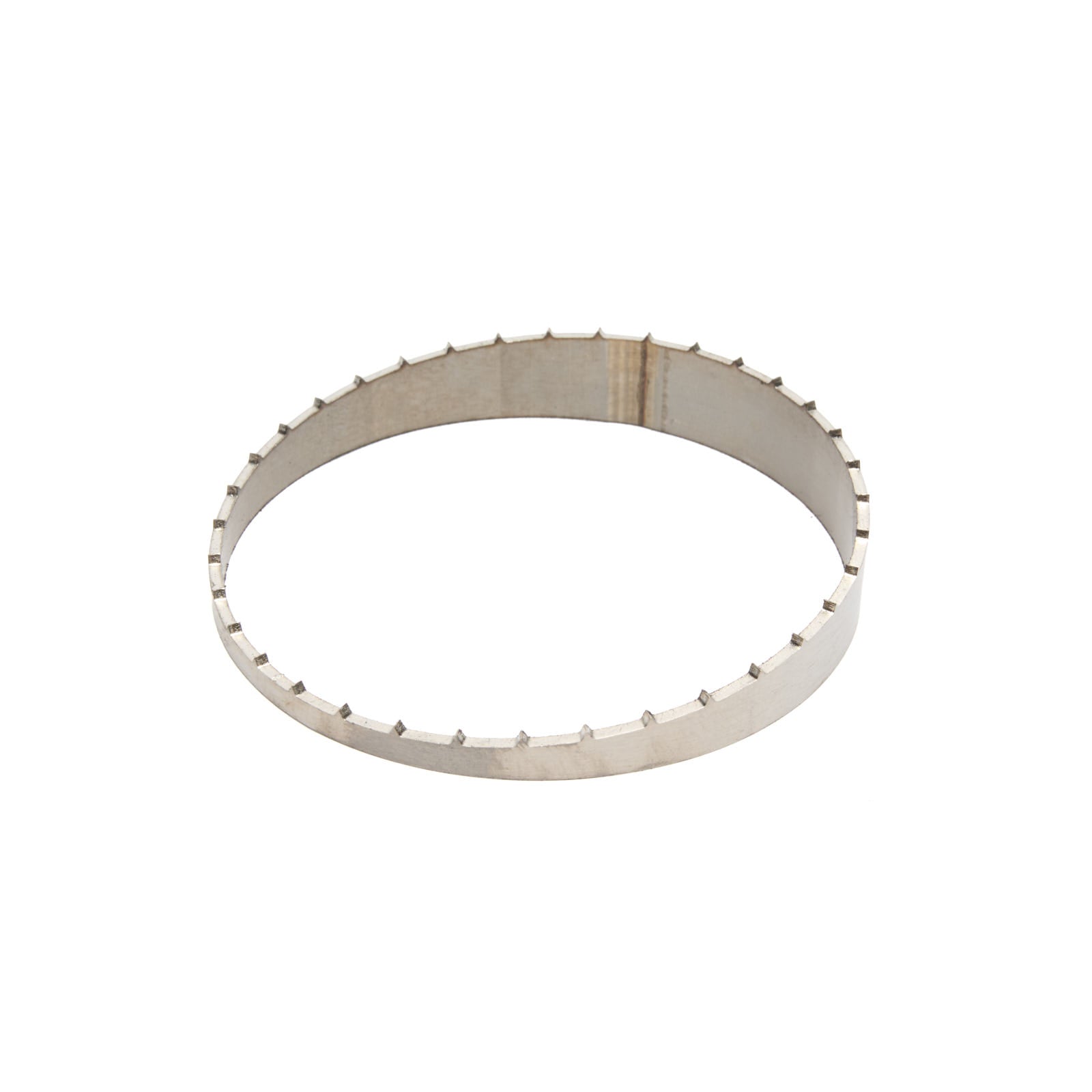

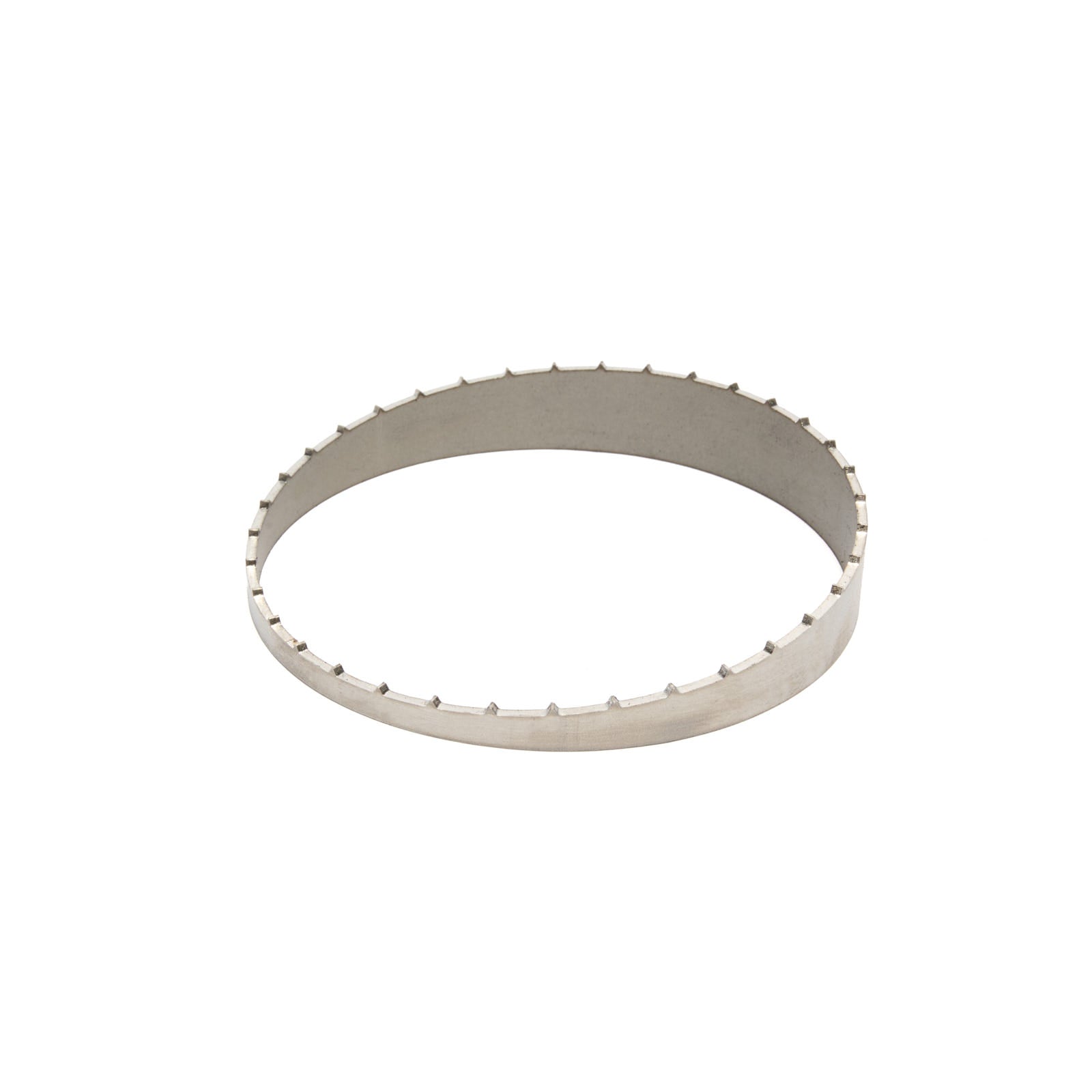

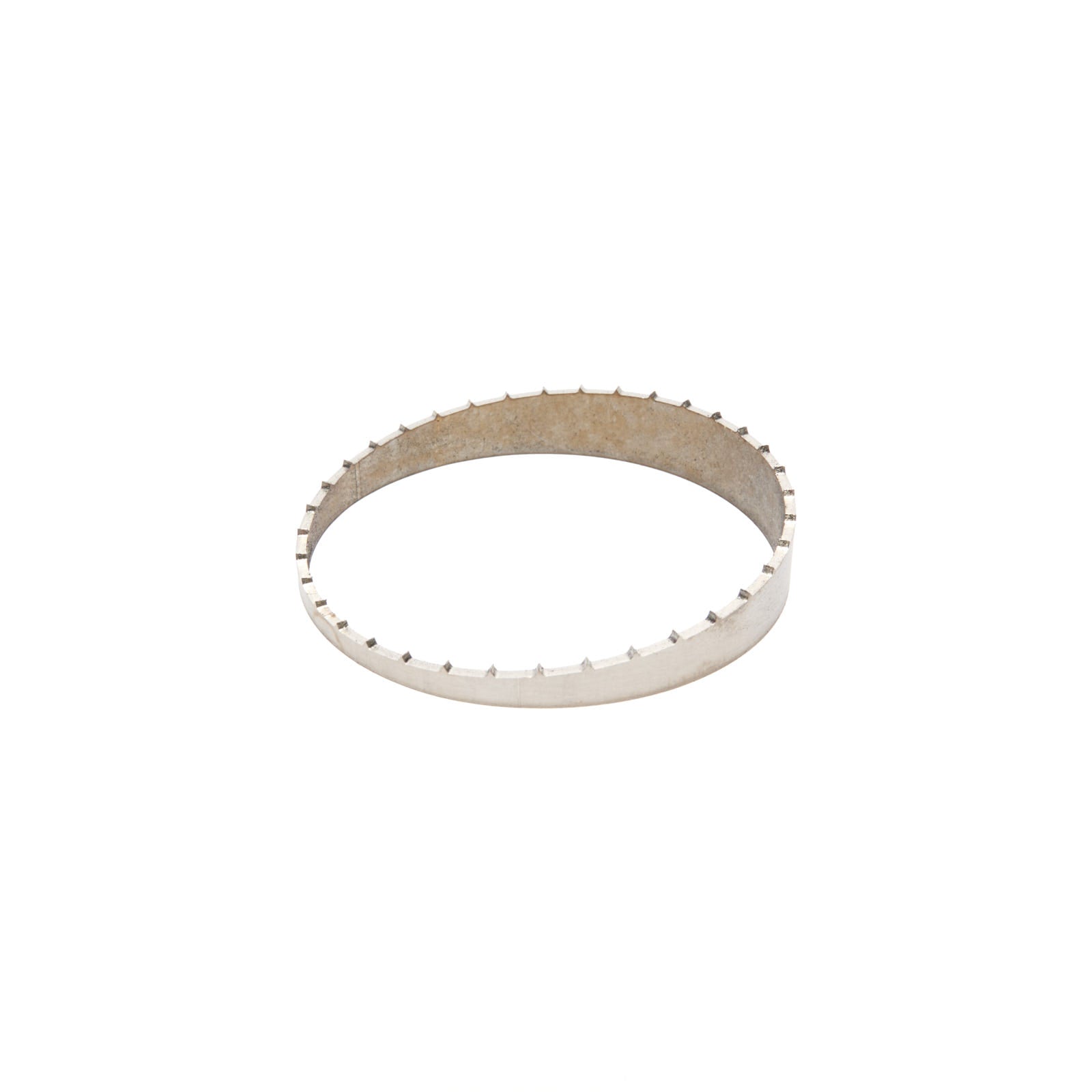

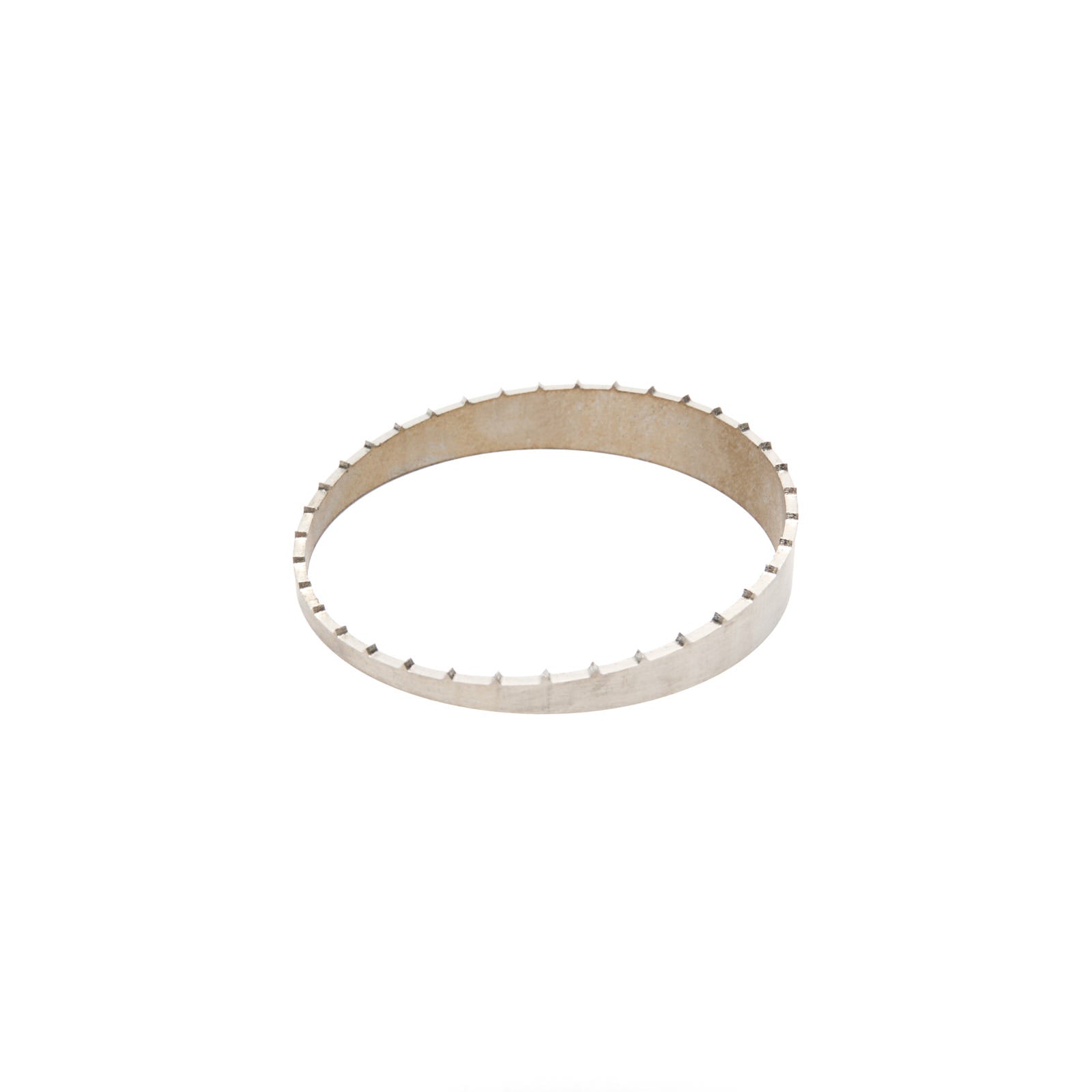

90° pie cut interlocking start segment type – norm 2 - 15° segment - 1.4301 stainless steel
Stainless steel pipe segment for custom-built exhaust systems, downpipes, charge pipes, and coolant lines
The latest technology in Pie Cut fabrication! Forget tedious marking, angle measuring, and manual cutting – these precision Pie Cuts make it effortless!
Precisely engineered start and end segments for pie-cut bends: one side is smooth for connection to a straight pipe, while the other side features male spigots for a perfect, interlocking alignment to the next segment. Ideal for clean, repeatable weld joints in exhaust, intercooler, and intake systems.
The tab design ensures quick alignment without jigs, minimizes gaps, and improves weld appearance – perfect for TIG welders, prototype builders, and professional fabricators.
Features:
One smooth side and one male spigot side – ideal for starting or finishing a pie-cut bend with spigots
Interlocking fit: reduced gaps and less post-processing
Weld-ready: deburred, clean-cut, and oil-free
Compatible with our other tabbed Pie Cuts of the same size
Suitable for TIG/MIG welding; TIG recommended for the highest quality
Processing Advantages:
Quick, precise positioning thanks to the spigot alignment system
Stable tack-welding – reduced distortion during final welding
Clean internal contour for optimal flow
Professional weld finish without step formation
Types & Applications:
Start Piece: Smooth side connects to pipe or straight section, interlock/male (spigot) side to the first segment group
End Piece: Female (spigot recess) side connects to the last segment, smooth side to outlet or end pipe
Suitable for exhaust systems, charge pipes, intake and cooling systems
Welding Instructions:
Degrease and deburr mating surfaces, check fitment before welding
Tack-weld all around, then perform full circumferential welding
For best appearance and internal quality: use moderate heat control and proper back purging
Material & Specifications:
Material: 1.4301 Stainless Steel – corrosion- and heat-resistant
Size: See Drop-Down menu
Wall Thickness: 1.5 mm
Angle: 15°
Radius: See Drop-Down menu
Manufacturing tolerances matched to our tabbed segment series
*We can also supply Spigot Pie Cuts with 9° or 12° cuts on request (minimum order quantity: 50 pieces per size).
Scope of Delivery:
1× See Drop-Down menu: Pie Cut with Spigot Start / End Piece – Norm 2 – 15° Segment – 1.4301 Stainless Steel

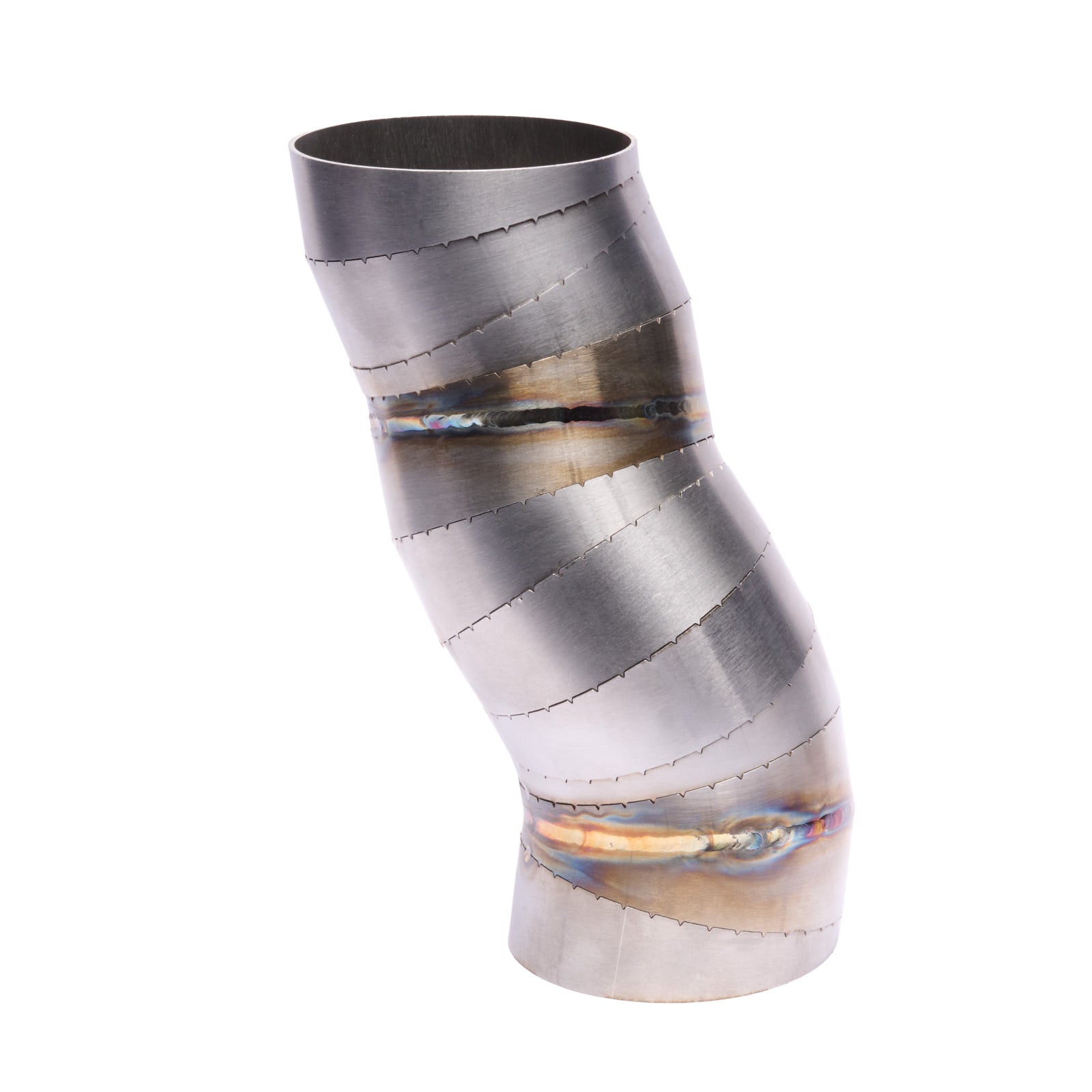

Additional tabbed Pie Cuts are available in our shop – for complete segmented bends.
