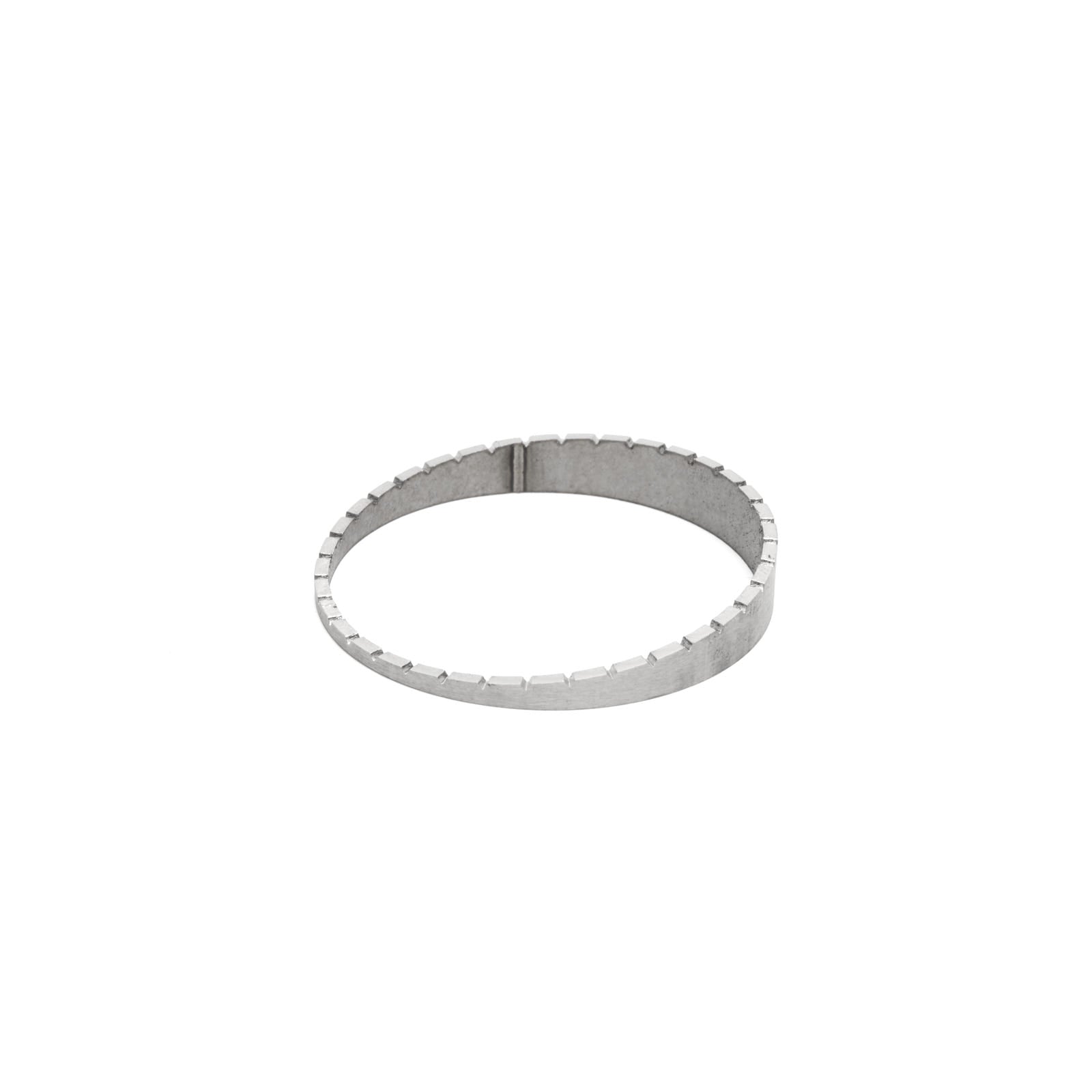

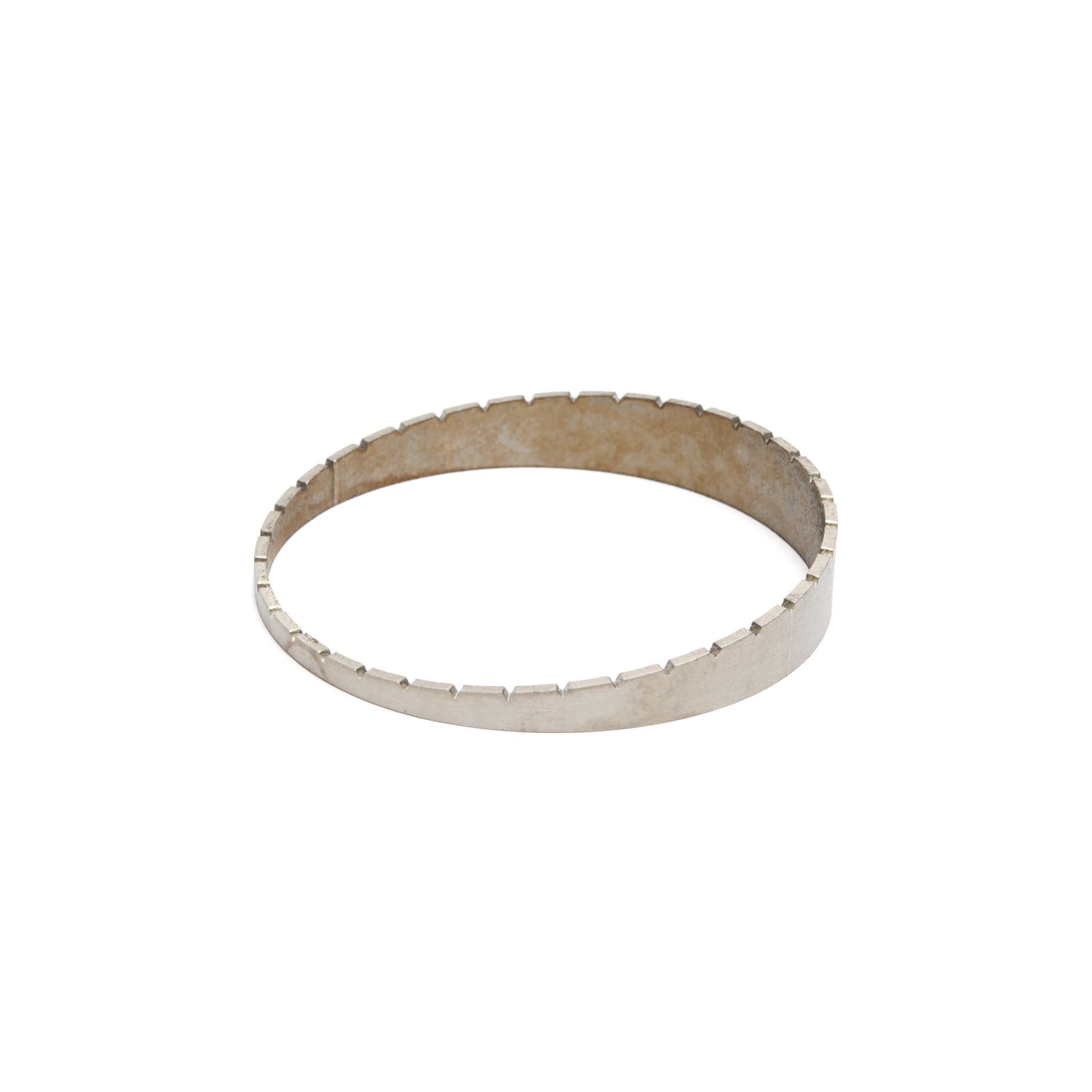

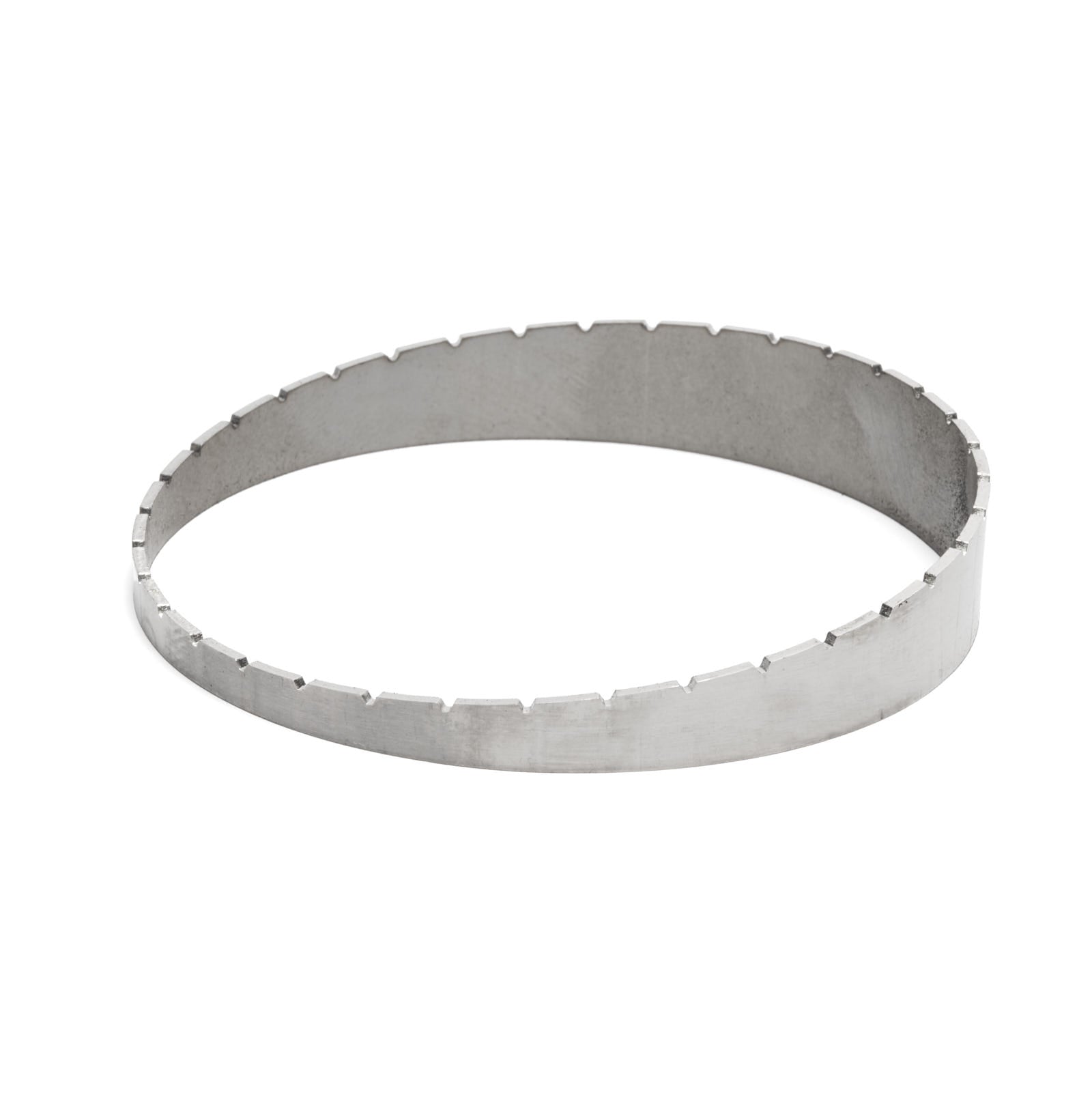

Pie Cut with Spigot - Female Segment - super tight Radius - 15°

90° pie cut interlocking end segment type – norm 2 - 15° segment - 1.4301 stainless steel

Stainless steel pipe segment for custom-built exhaust systems, downpipes, charge pipes, and coolant lines

The latest technology in Pie Cut fabrication! Forget tedious marking, angle measuring, and manual cutting – these precision Pie Cuts make it effortless!

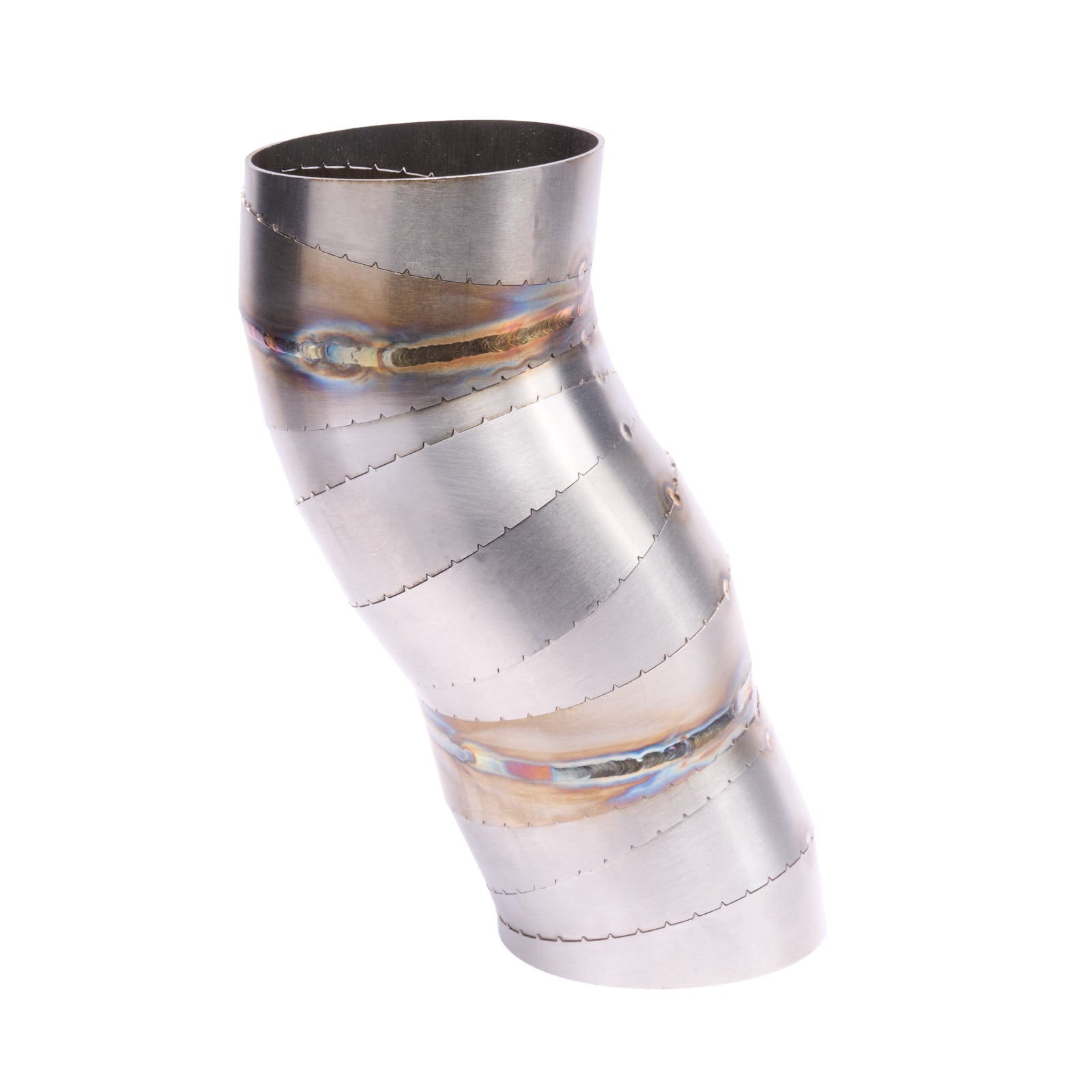

Precisely engineered start and end segments for pie-cut bends: one side is smooth for connection to a straight pipe, while the other side features female spigots for a perfect, interlocking alignment to the next segment. Ideal for clean, repeatable weld joints in exhaust, intercooler, and intake systems.

The interlock/spigot design ensures quick alignment without jigs, minimizes gaps, and improves weld appearance – perfect for TIG welders, prototype builders, and professional fabricators.

Features:

• One smooth side and one female spigot side – ideal for finishing or starting a pie-cut bend with spigots
• Interlocking fit: reduced gaps and less post-processing
• Weld-ready: deburred, clean-cut, and oil-free
• Compatible with our other spigot/ interlock Pie Cuts of the same size
• Suitable for TIG/MIG welding; TIG recommended for the highest quality

• Quick, precise positioning thanks to the spigot alignment system
• Stable tack-welding – reduced distortion during final welding
• Clean internal contour for optimal flow
• Professional weld finish without step formation

• Start Piece: Smooth side connects to pipe or straight section, interlock/male (spigot) side to the first segment group
• End Piece: Female (spigot recess) side connects to the last segment, smooth side to outlet or end pipe
• Suitable for exhaust systems, charge pipes, intake and cooling systems

• Degrease and deburr mating surfaces, check fitment before welding
• Tack-weld all around, then perform full circumferential welding
• For best appearance and internal quality: use moderate heat control and proper back purging

• Material: 1.4301 Stainless Steel – corrosion- and heat-resistant

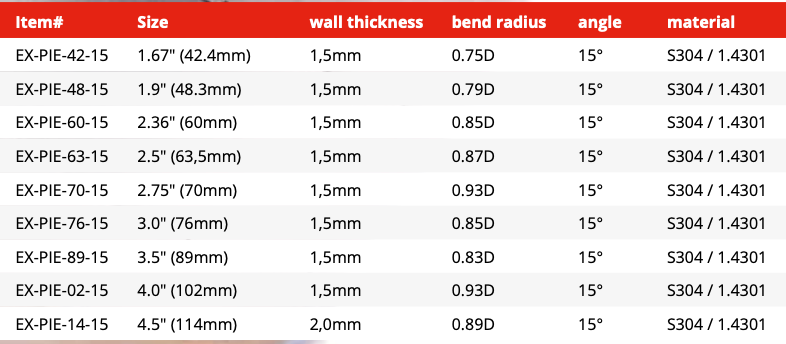

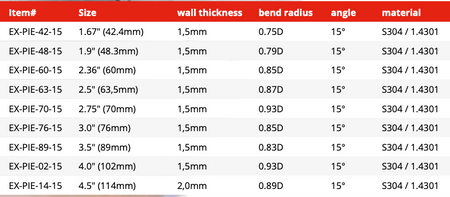

• Size: See Drop-Down menu
• Wall Thickness: 1.5 mm
• Angle: 15°
• Radius: See Drop-Down menu
• Manufacturing tolerances matched to our tabbed segment series
*Looking for other angles?
By standard we do sell 15° only. MOQ is 1 pcs. But if you need 9° or 12.5° cuts, we can supply them as custom order with an MOQ of 50pcs.
