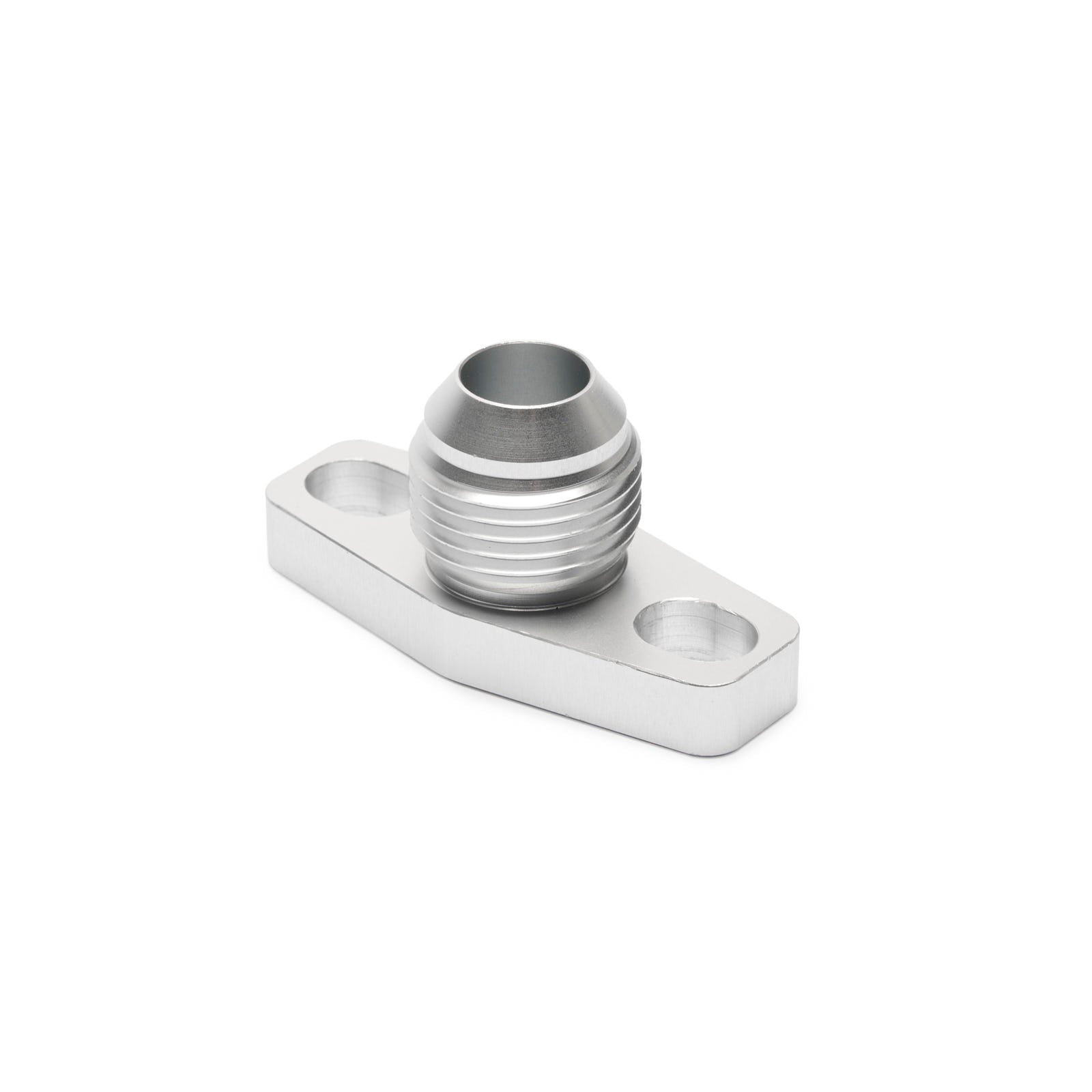

Oil Return Flange GT / GT-R

Return Flange with Dash 10 Outer Thread

high quality CNC milled Aluminium Flange with Thread

This Aluminium Oil Return Flange for Garrett GT Turbocharger is CNC milled and a perfect fit. The long Bores give a certain flexibility for other Turbochargers with similar Flange. The Return bores profile is made in the right size to allow the flow back of the Oil.

Material: Aluminium CNC milled
Thread: Dash 10 / -10AN Outer Thread
Overall Size: 57mm x 25mm
Bore Distance: 38-45mm (Long bores, measured: minimal to maximal middle of bore)
Bore Diameter: 9mm

Fits with:
ball bearing Turbocharger
plain bearing Turbochargers 10th and 20th Series

Garrett T12
Garrett T15
Garrett T2, T20
Garrett T25
Garrett GT2554R (471171-5003)
GT2854R (471171-5009)
GT2859R (780371-5001 / 707160-5009)
GT2860R (707160-5007 / 707160-5005 / 739548-5009)
GT2860RS (739548-5001 / 739548-5005)
GT2871R (743347-5001 / 743347-5002 / 743347-5003 / 743347-5004 / 472560-5015 / 771847-5001 / 780371-5002 / 707160-5010)
GT2876R (705330-5001 / 705330-5002)
GTX2860R (816364-1)
GTX2863R (816365-1)
GTX2867R (816366-1)
GT3071R-WG
GT3071R (CHRA 700177-5023)
GT3076R-WG
GT3076R-C10
GT3076R (700382-5012)
GTX3067R (824727-0001)
GTX3071R (803712-1)
GTX3076R (803713-1)
GT3582R (714568-5001 / 714568-5002 / 714568-5003 / 714568-5007 / 714568-5008 / 714568-5009 / 714568-5010 / 714568-5011 / 714568-5012)
GTX3576R (803714-1)
GTX3582R (803715-1)

Note:

For the Supply Line please choose minimum a Dash 4 Line. The Oil Return Line needs to be minimum Dash 10/ minimum inner diameter 16mm!

5 Years BOOST products Warranty

For this item you receive 5 years warranty in the Area of the Federal Republic of Germany, additionally to the legal guarantee. The processing is handled directly by BOOST products GmbH regarding the BOOST products Warranty Terms. You find these at www.boost-products.eu/en/cont/warranty-conditions/.
