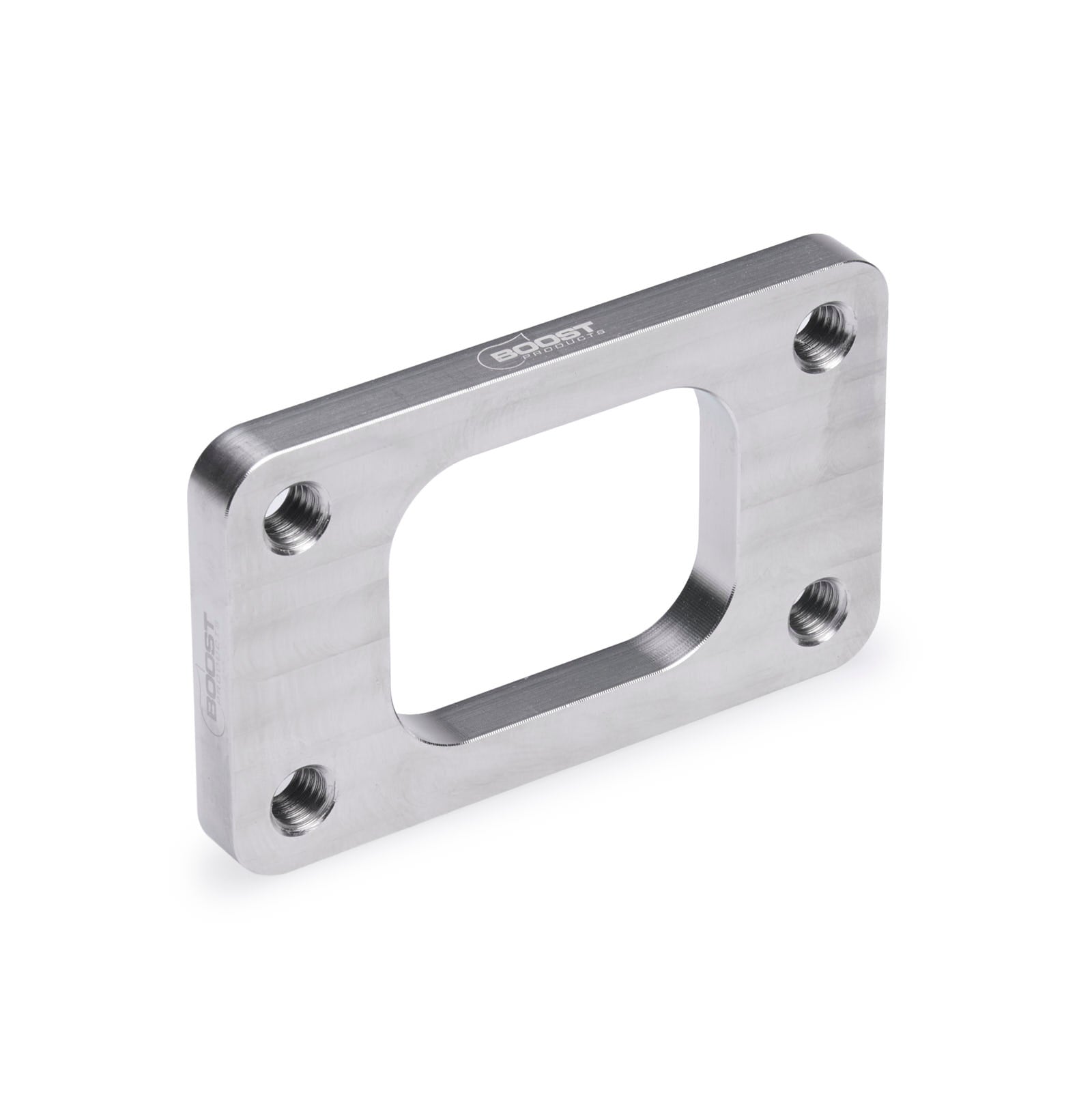

Exhaust Turbo Manifold Flange T3 / GT3X Singlescroll

Turbo flange for exhaust turbo manifold construction

Premium stainless steel turbo flange with threads

BOOST products high quality stainless steel CNC mashined flanges for turbo manifolds, downpipes flanges and others. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.

Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Total dimensions: 110mm x 69mm
Dimensions cut-out: 61mm x 44mm
Hole distance: 86mm x 46mm
Thread: M10x1.5
Extras / Features: Flange with threads! No holes!

For / Fits:
Garrett G-Series G30-660, G30-725, G30-770, G30-900, G35-900, G25-990, G35-1050
BorgWarner EFR B2-Frame Series (EFR-7064, EFR-7670, EFR-8374, EFR-8474, EFR-9174, EFR-9180, EFR-9280)
Tial T3 Singlescroll turbine housings
AGP Turbo T3 Singlescroll turbine hosings
Precision Turbo T3 Singlescroll turbine hosings
Turbocharger T3(X) up to T37
Turbocharger KKK27 and others
Garrett T3
Garrett T3/T4 (excl. T4 turbocharger)
Garrett GT32
Garrett GT35
Garrett GT37
Garrett GT30R , GT3076R , GT3076RS , GT30RS , GT30R HF
Garrett GT35R , GT3582R , GT35/40R , GT35R HF
Garrett GT3082R , GT30/40R , GT3082R HF
Garrett GT3071R
BorgWarner KKK K27
...as well as all other Garrett turbochargers with T3 turbine housings. ZB. GT2554R with T31 turbine housing and similar.

If you are unsure whether this flange fits to your turbocharger, just draw a sketch of your turbine entry flange and hand it to us for comparison.
