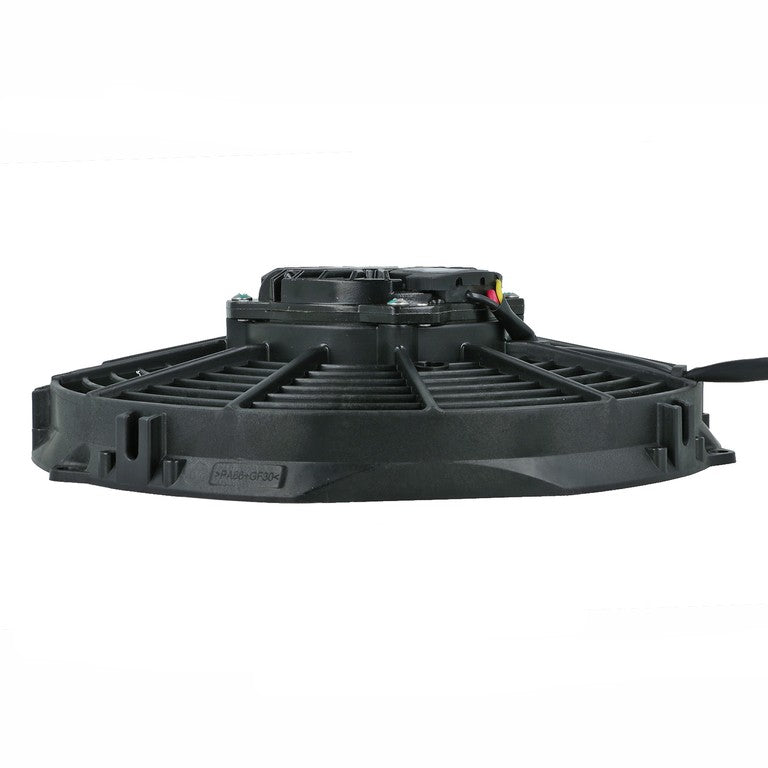

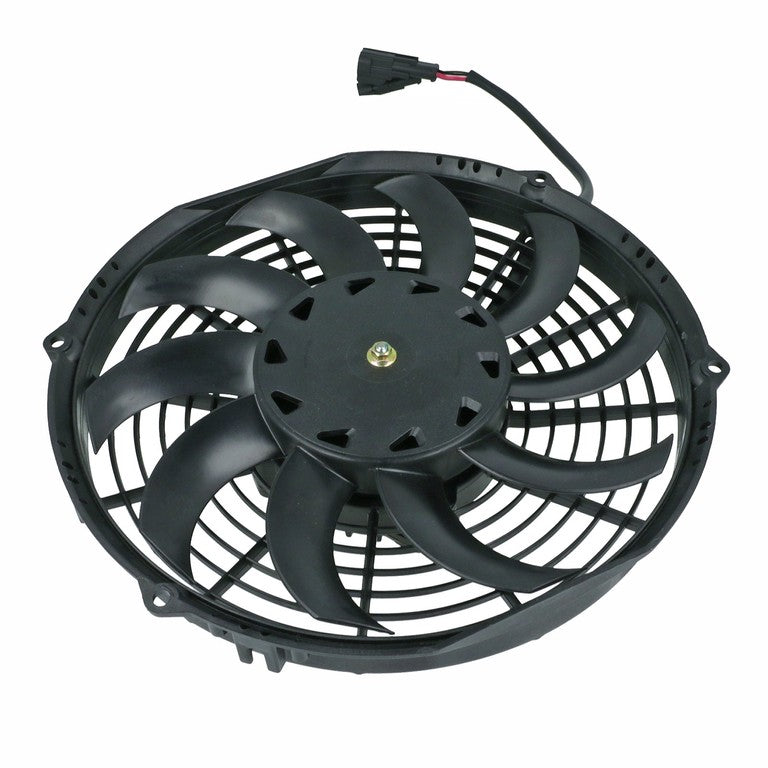

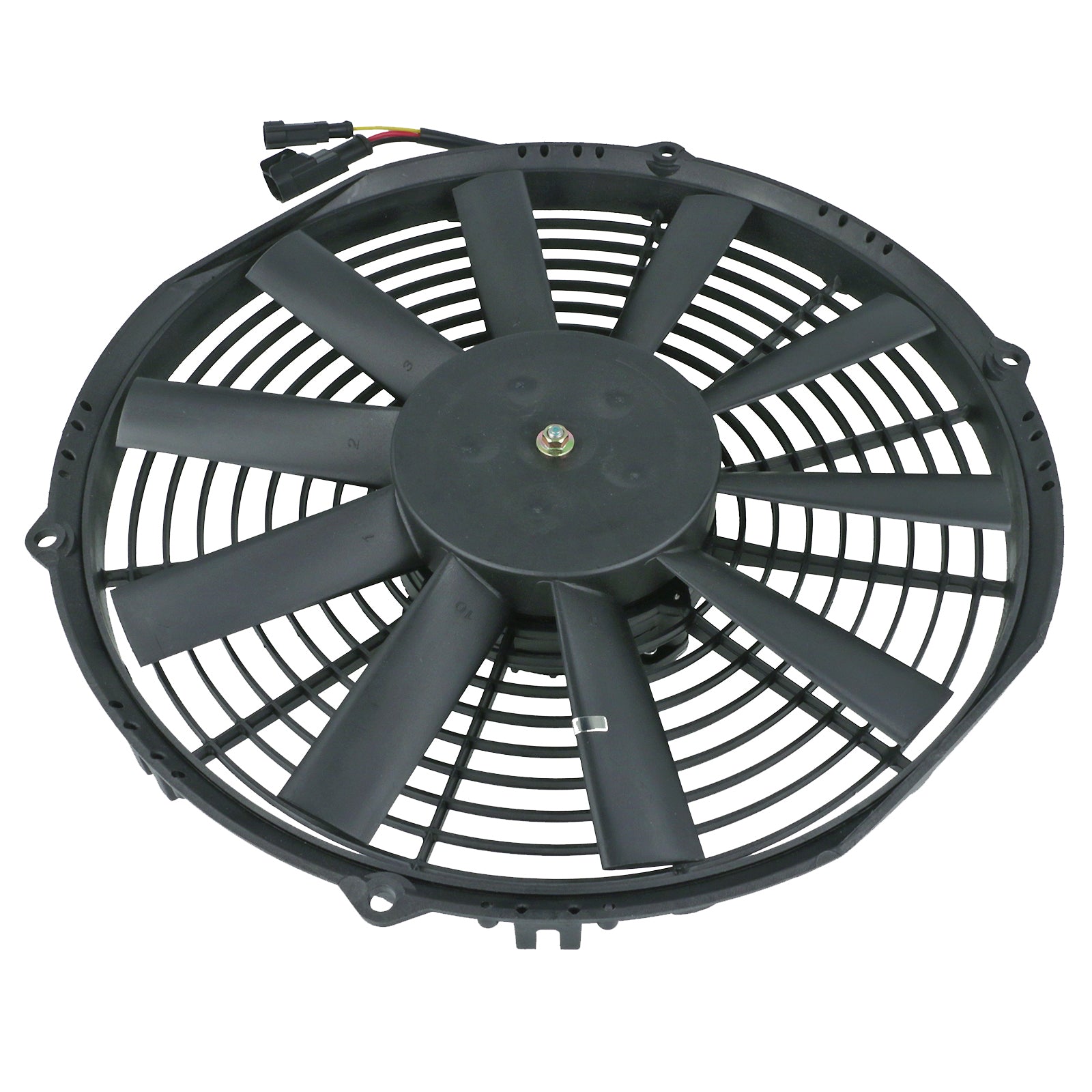

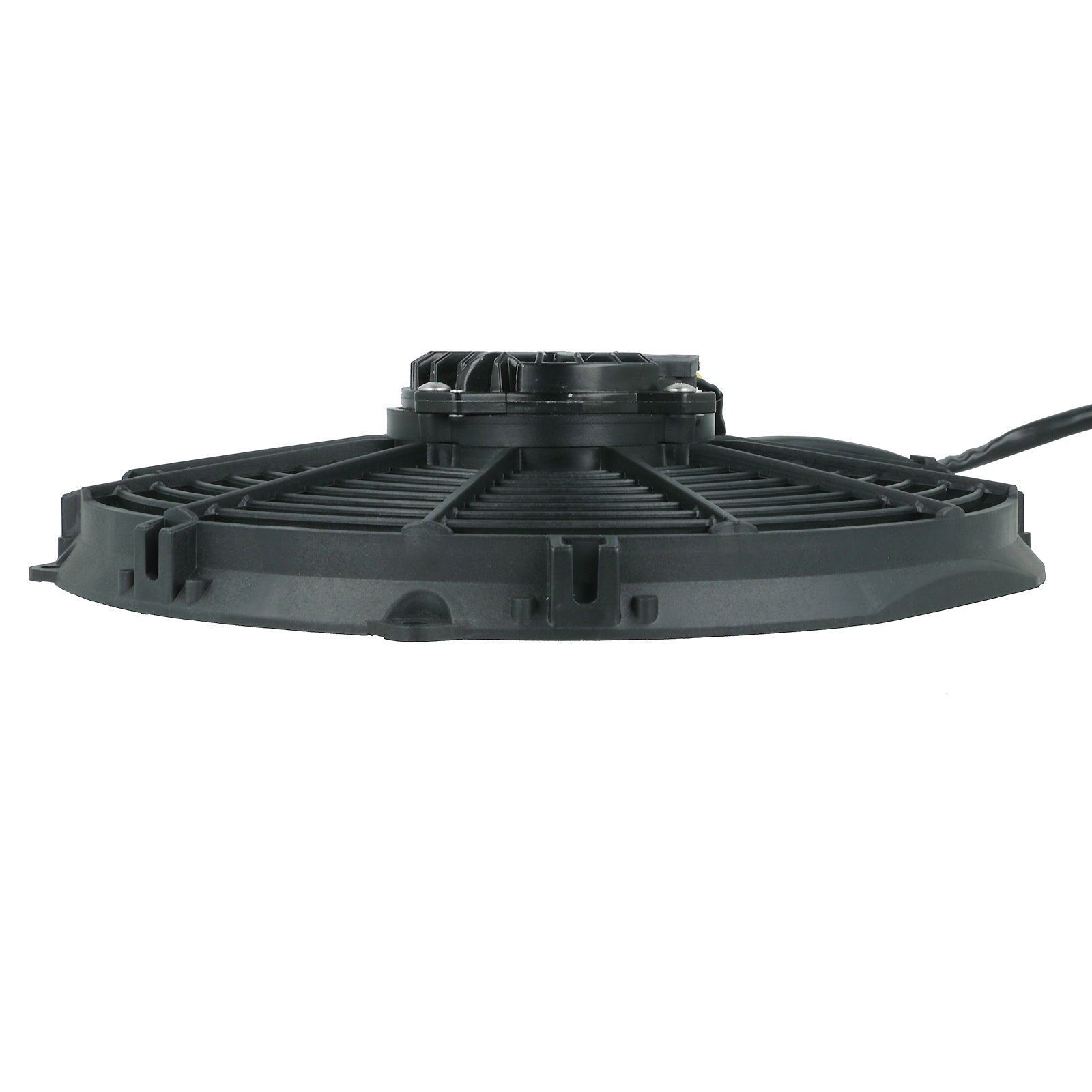

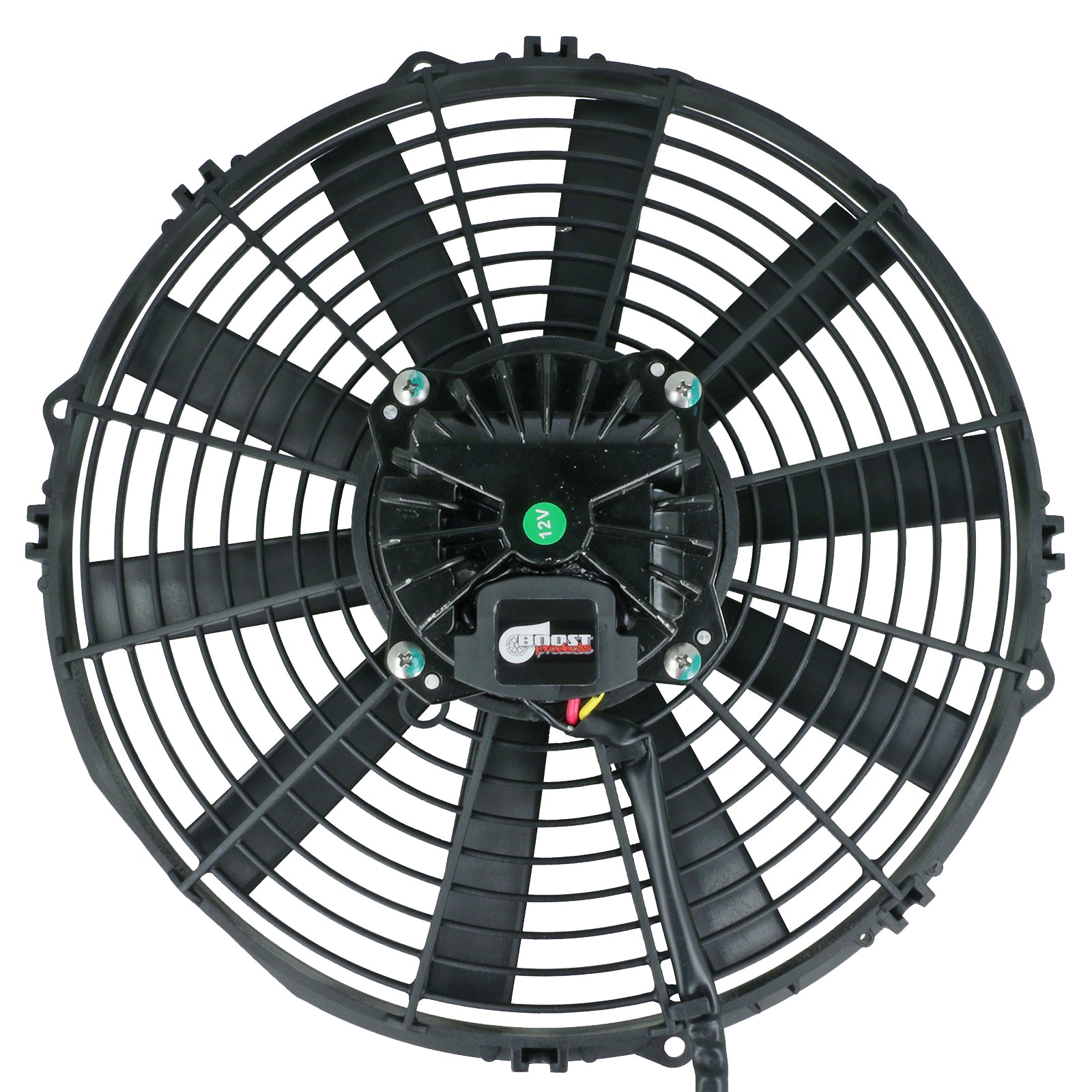

Brushless high performance fan for water cooler, oil cooler or intercooler
Racecar proven, soft-start, super light, efficient, slim design
BOOST products high performance motorsport cooling fan. Unlike SPAL or Mishimoto fans, all BOOST products fans are equipped with a brushless motor and therefore much more powerful. The 1470 CFM 12" high-performance brushless puller fan is built for both on- and off-road applications, offering durability in all weather conditions while being resistant to sand, mud, water, fog, and chemicals. Engineered for maximum performance and longevity, the fan features integrated power and control electronics within a sealed motor housing, ensuring extended lifespan and reliability. The BOOST Products fan operates as a completely independent system, making it a plug-and-play upgrade for any vehicle. Enhance your OEM radiator, intercooler, or oil cooler with this advanced electric brushless system and experience superior cooling efficiency. Designed with a specially optimized blade profile, the fan maximizes airflow and energy efficiency. The motor utilizes high-quality ferrite magnets and state-of-the-art sensorless drive technology, specifically developed for automotive use. To further extend the lifespan of the motor and protect your vehicle�s electrical system, BOOST Products integrates a soft-start feature into its brushless series motors.
Brushless motor technology
PWM or sensor control possible
Low Noise and vibration
Lightweight motor design
Soft Start feature which prevents sharp spikes in current
Slim fit
More efficient than brushed fans
Operates in challenging environments
IP Rating: IP68
Duty-cycle: over 20,000 hours
PWM sensor control or "instant on": The built-in PWM signal will provide proportional control of fan speed through your PDM. PWM range between 50-200HZ (15% start to 100% full-speed). Failsafe built-in PWM input loss of communication that will run the fan at full speed.
Technical facts:
Height: 11.52"
Width: 12.55"
Depth: 2.83"
Min (low) CFM: 910
Max (high) CFM: 1470
Amp Draw: 13A @ 13.5V
10 - 16 VDC / Variable Speed
Lightweight: 1,85 kg in overall weight
Operating Temperature Range: -40 - 125�C (-40�F - 257�F)
PULLER Style Fan
PWM/E Frequency Range: 50Hz�1000Hz, Typical Value: 100Hz
