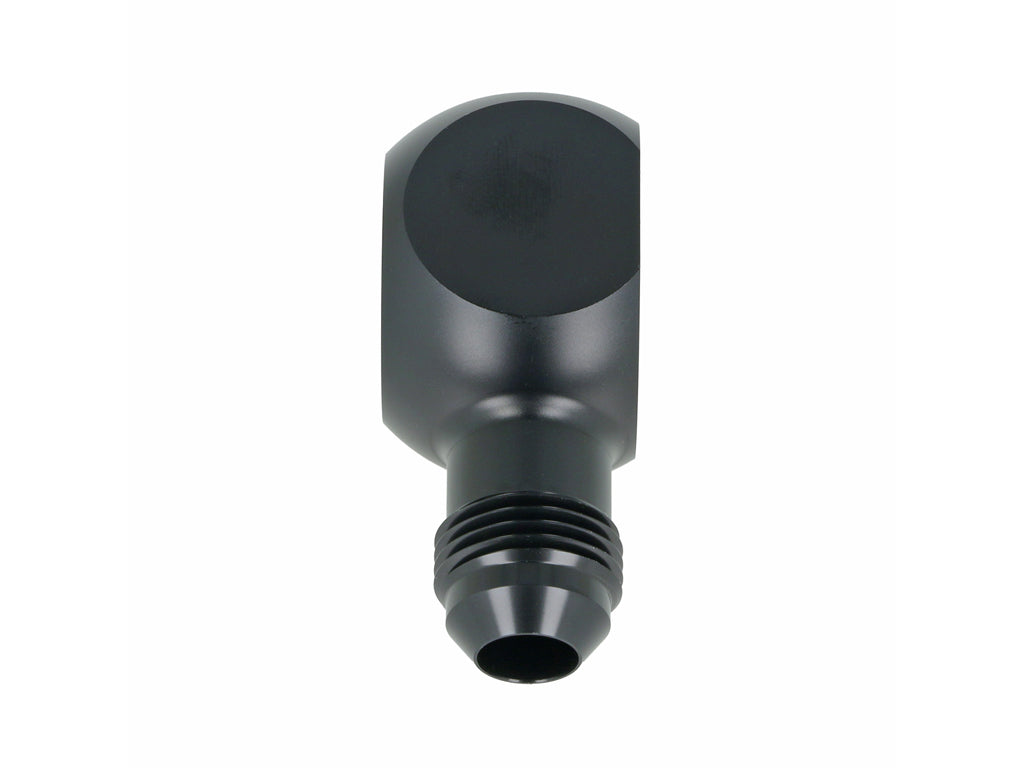

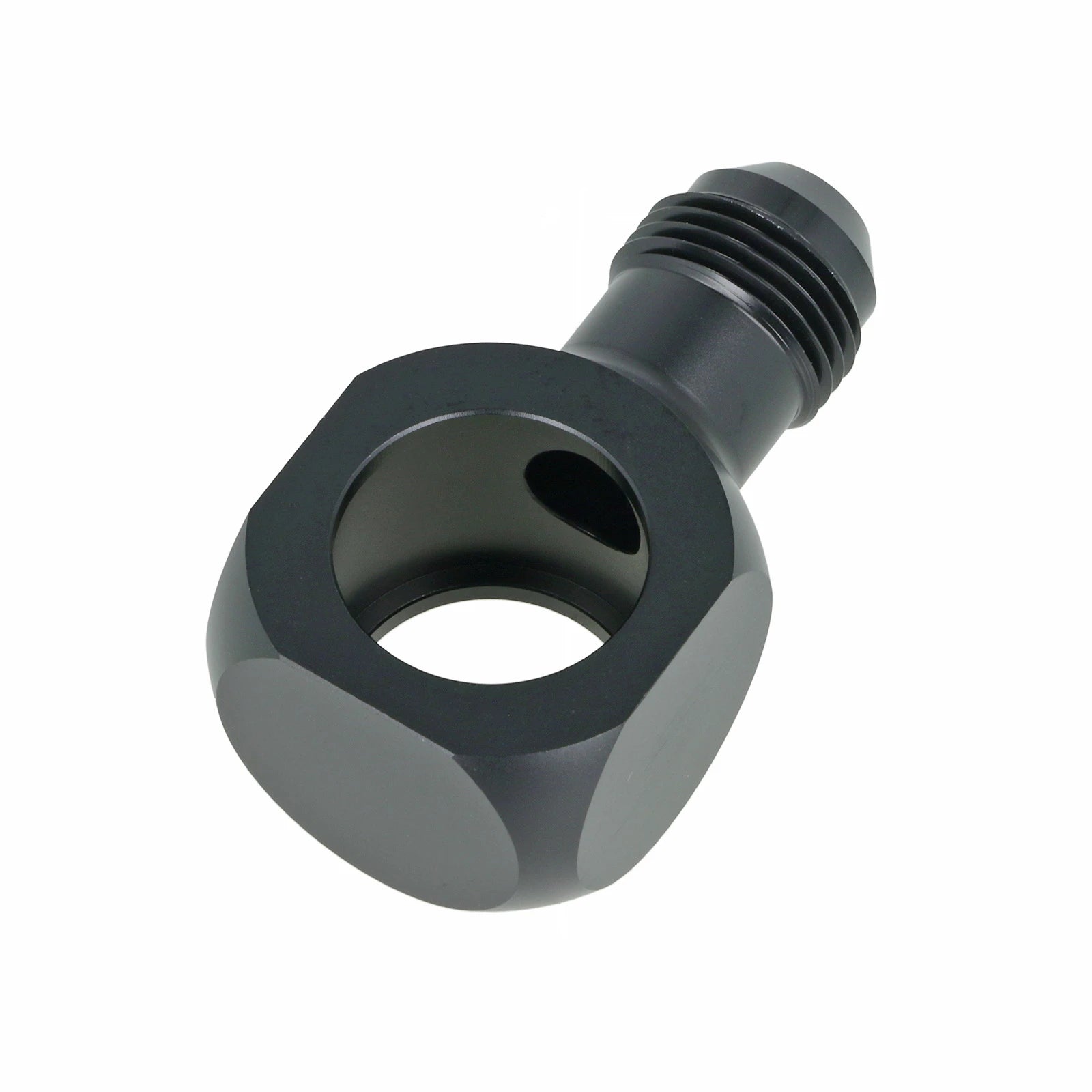

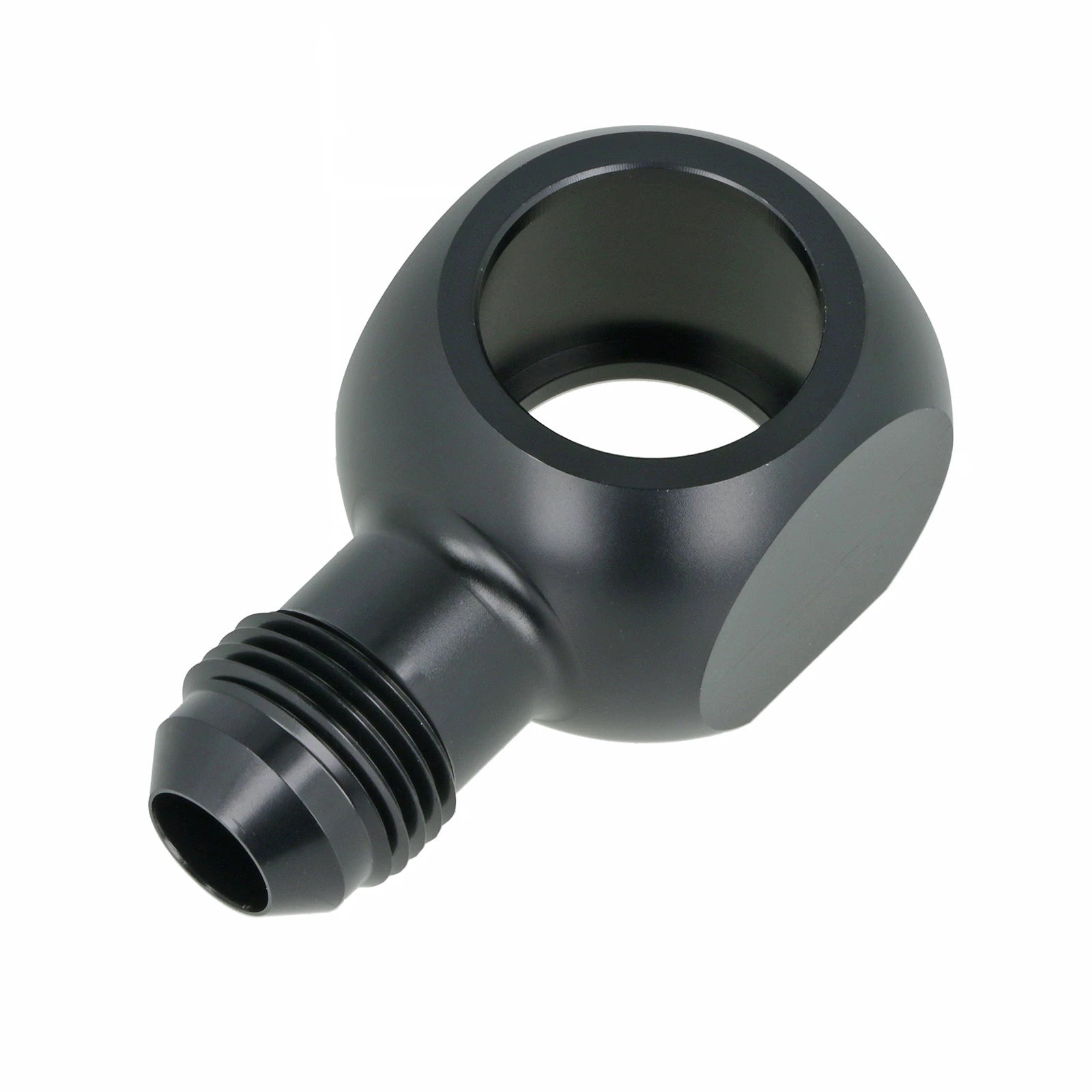

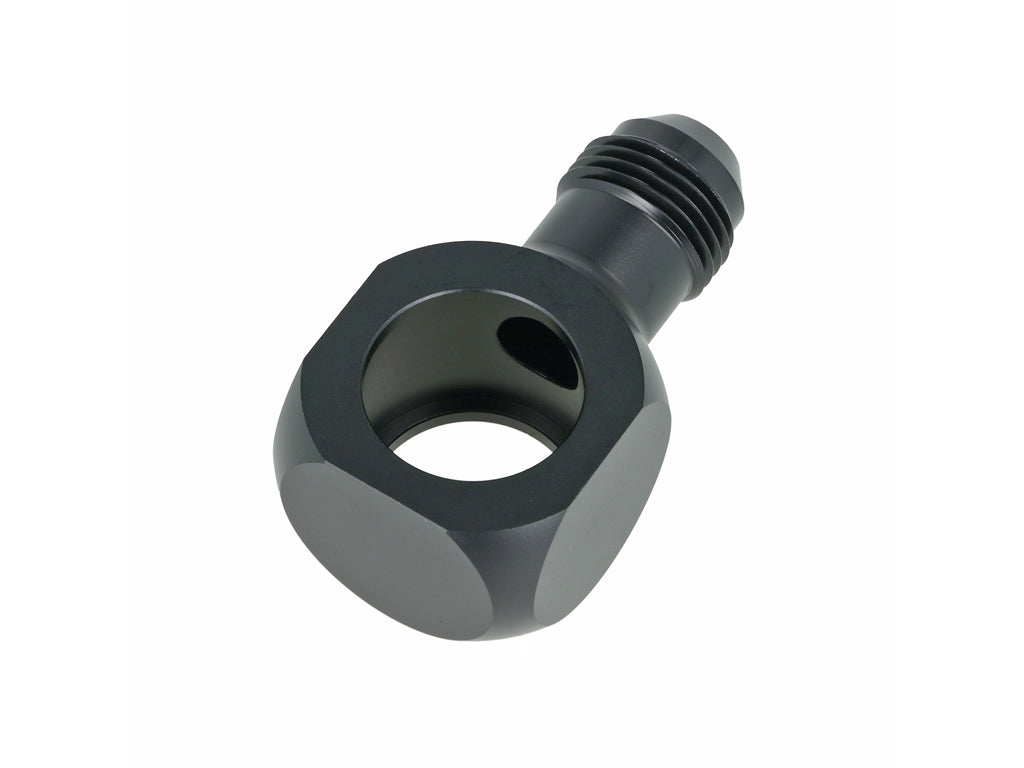

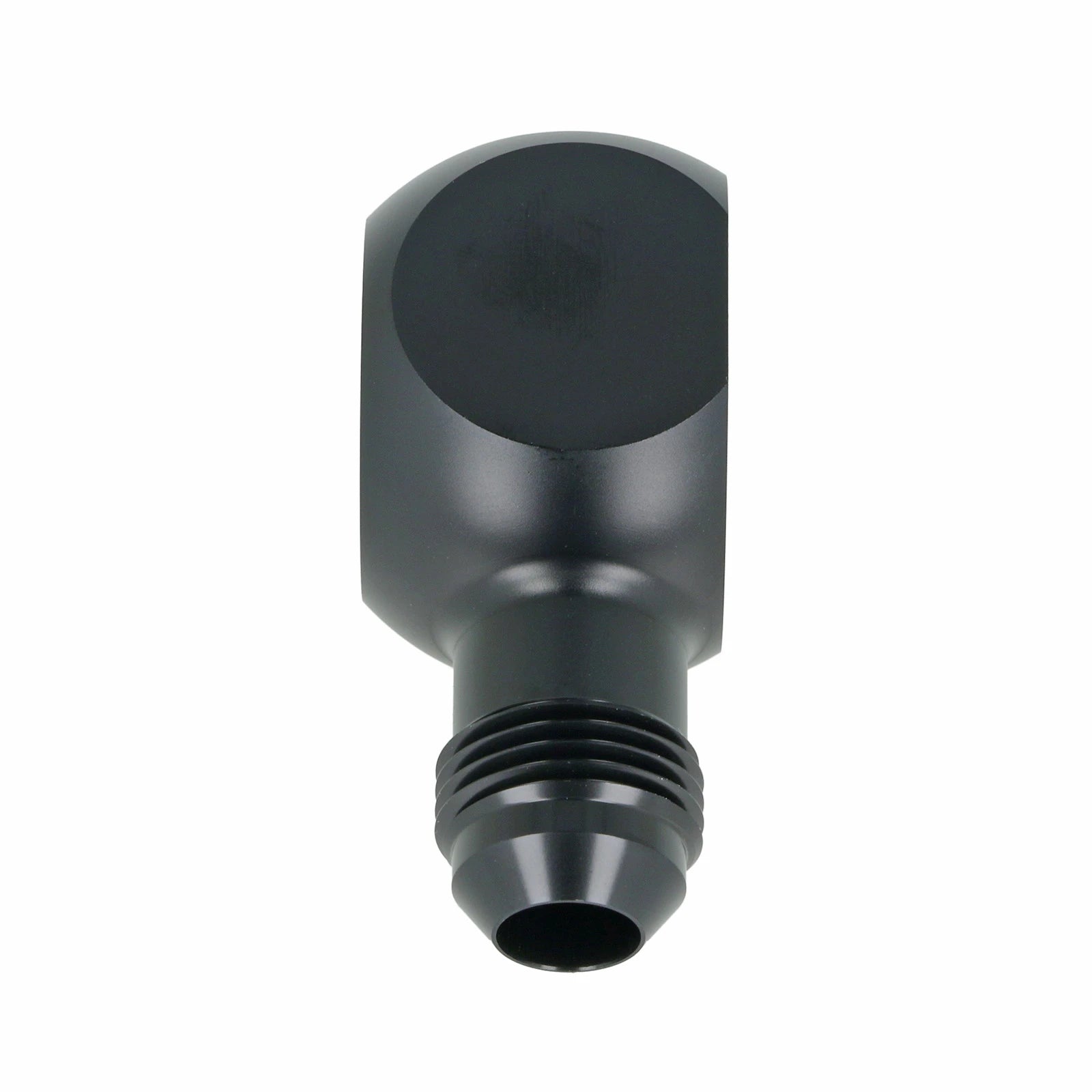

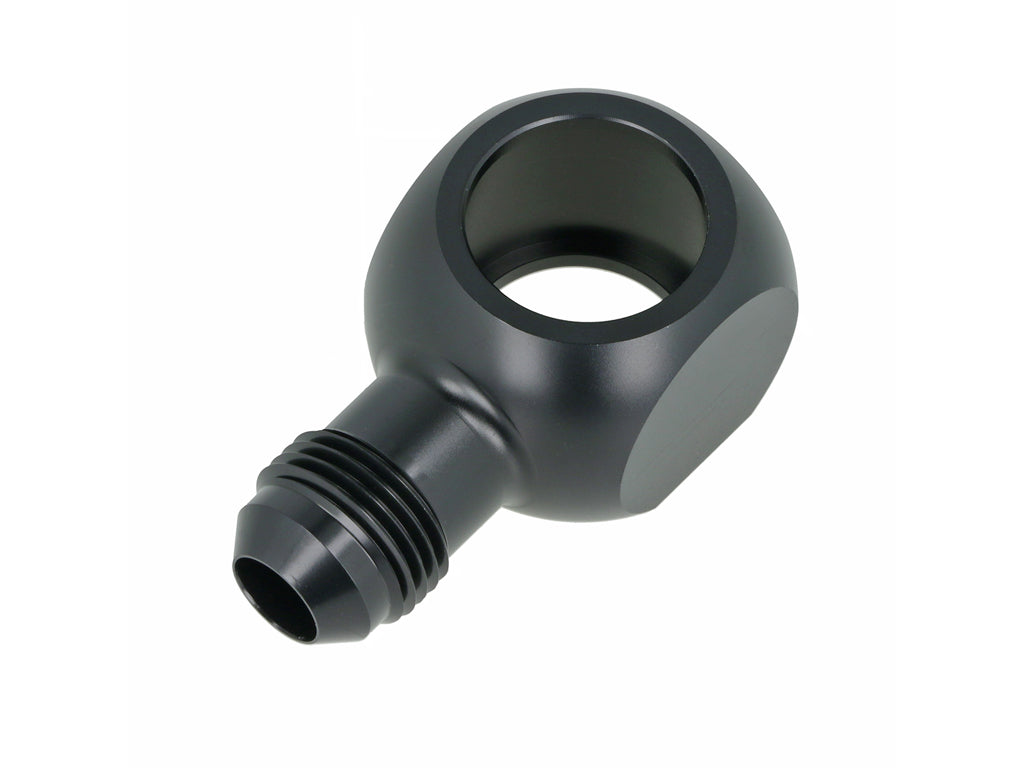

BOOST Products Eye Banjo M22 x 1,5mm to Dash 10 - black matt

Aluminum Ring Eye M22 x 1.5mm to -10AN / Dash 10 (7/8-14 UNF) male

High-quality Banjo Fitting for Setrab oil coolers, water connections, pumps, suitable for E85 fuel, and pneumatic systems

BOOST Products M22 Banjo fitting / ring eye to Dash 10 external thread in satin black, suitable for Setrab oil coolers along with the BOOST Products banjo bolt (HS-M2215-BM).
Please note that 2x M22 aluminum sealing rings are required for each eye banjo!

This eye banjo is perfect for tight spaces where classic 90° hose connection fittings wouldn't fit due to space constraints. The Banjo fitting allows for a space-saving 90° connection.
Also suitable for numerous other applications in the hydraulic and pneumatic areas.

Material: Aluminum
Ring eye ID: 22,5mm
Thread: -10 AN / Dash 10 (7/8-14 UNF)
Total Height: 26mm
Ring eye OD: 32mm
Weight: 46g
Color: Black matt

BOOST products fittings, hoses and thread adapters are suitable for a wide variety of applications such as use on oil, water, and fuel lines and are resistant to E85 and methanol. The fittings and adapters are CNC machined from 6061-T6 aluminum and conform to U.S. specification AN d JIC industry standards. The matching hydraulic hoses to the fittings are available in different versions (nylon or stainless steel braiding, also with reinforced insert or as PTFE version). The self-sealing system originates from the defense and aerospace industries and has been successfully used in motor sports for decades. Thanks to the unique screw connections, the hoses are tight and pressure-resistant up to 650 bar (depends on size and type) without the need for press tools. All BOOST products hydraulic hoses were E85 and Methanol resistent. The hose fittings are screwed together with the matching hydraulic hoses.

Generally recommended for turbocharger applications (oil/water lines) is -04 AN / Dash 4 for oil feed lines and -10 AN / Dash 10 for oil return lines. Other hose/pipe systems, such as water or fuel lines are best selected according to the specifications of the existing connections and manufacturers recommendations. Unlike other suppliers, BOOST products also offers rotatable fittings with the designation "swivel", they are still completely rotatable after assembly. This is essential for easy assembly and often not available from cheap suppliers. We recommend depending on the application to make at least one side rotatable (swivel).
