BOOST products Downpipe Flange AirWerks S200 6-bolt / Holset Super HX40 14cm - Stainless Steel
Couldn't load pickup availability
- Vendor BOOST Products
- SKU FL-HX-40
Do you have questions about this product?

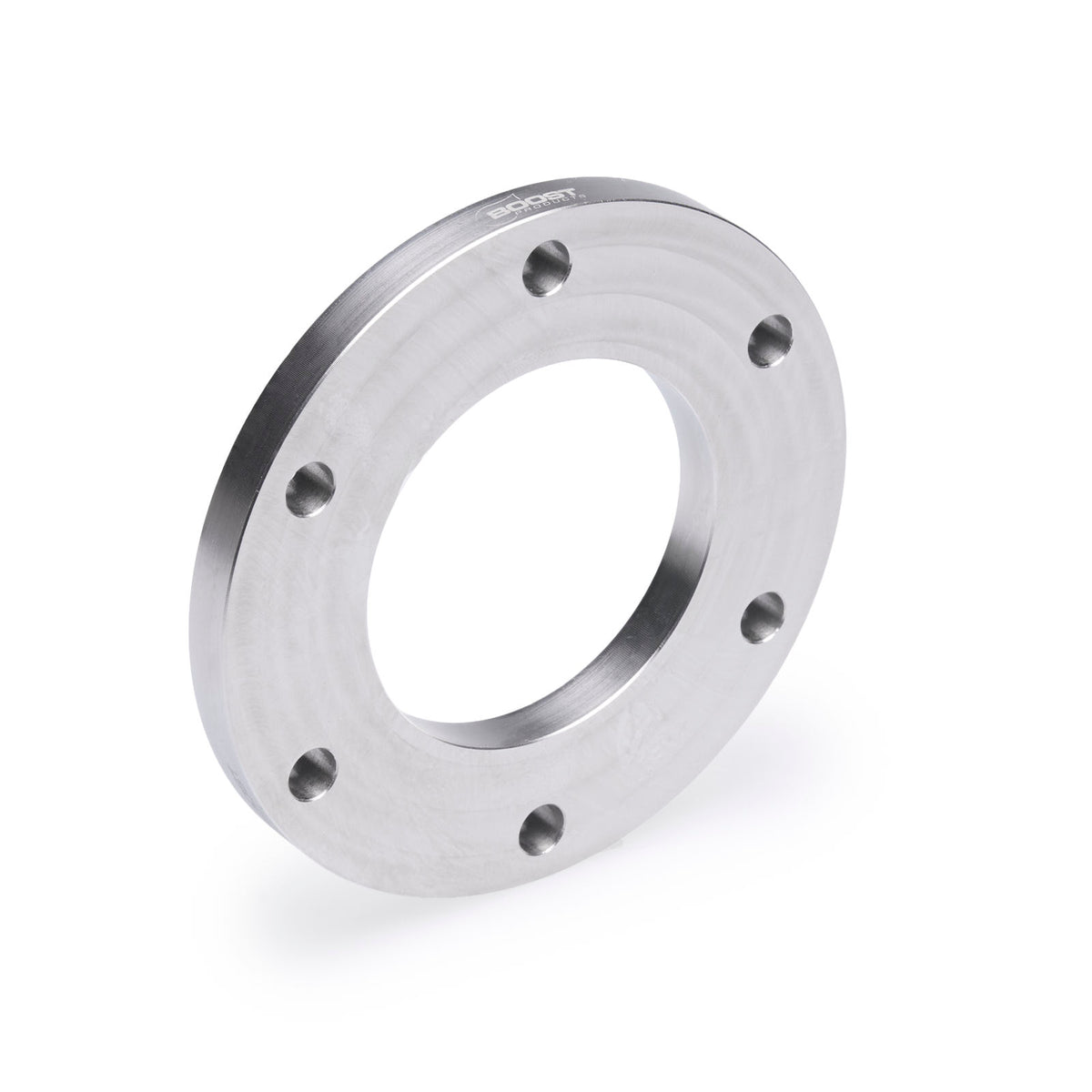

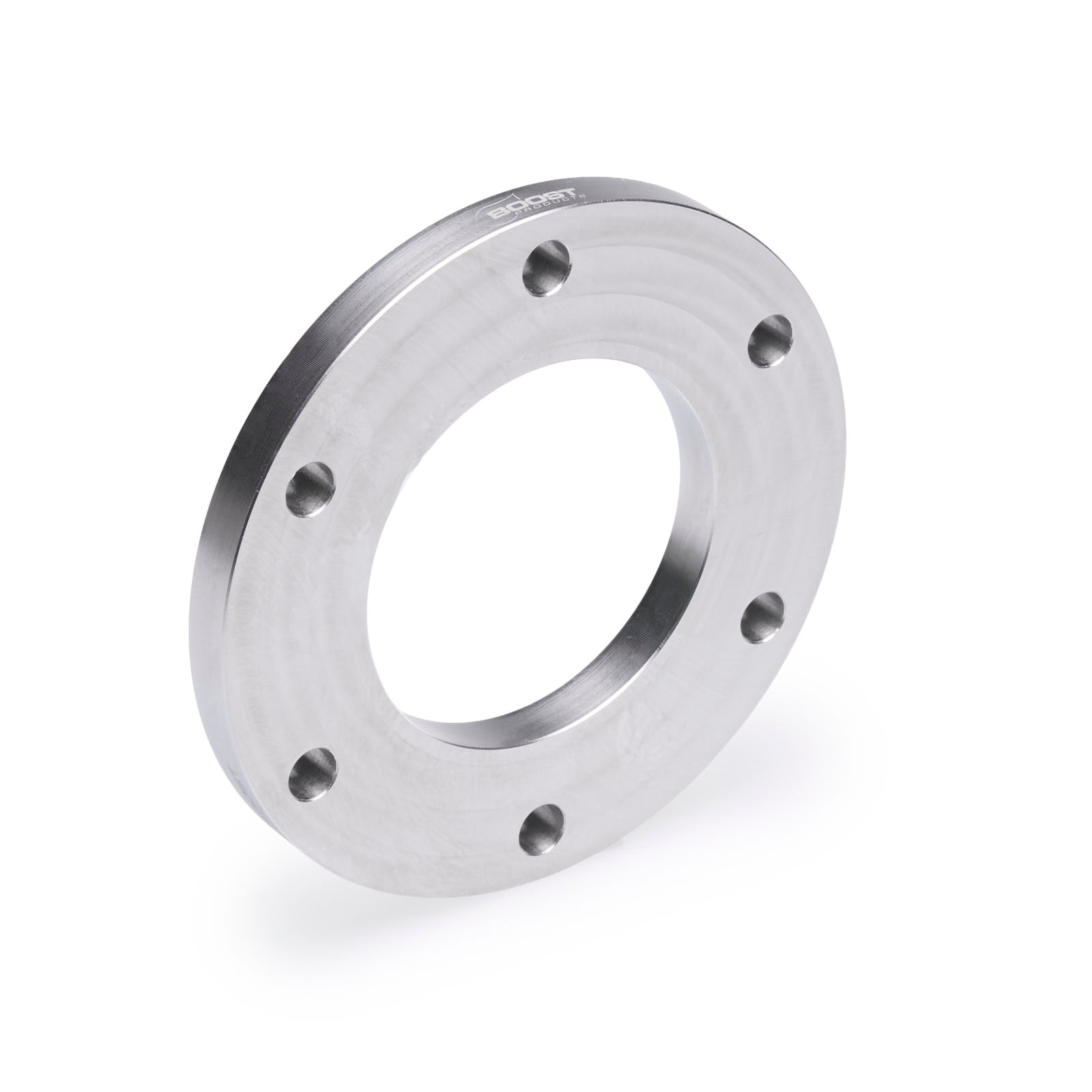

Downpipe Flange Holset Super HX40, 14cm²
Flange for fabrication of the downpipe
Premium stainless steel downpipe flange
This flange is used to fit the downpipe to the turbocharger, at the turbine outlet. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.
Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Dimensions cut-out: 67mm
Hole distance: 101,6mm (diagonal)
Thread: for M8
Extras / Features: No threads! Holes with ID 8,80mm
For / Fits:
Holset Super HX40, 14cm²
Turboausgang BorgWarner AirWerks S200 (317222, 317246)
If you are unsure whether the flange adapts to your turbocharger, get the dimensions here. If in doubt, you can make us a sketch of the exhaust side, we compare it for you!
