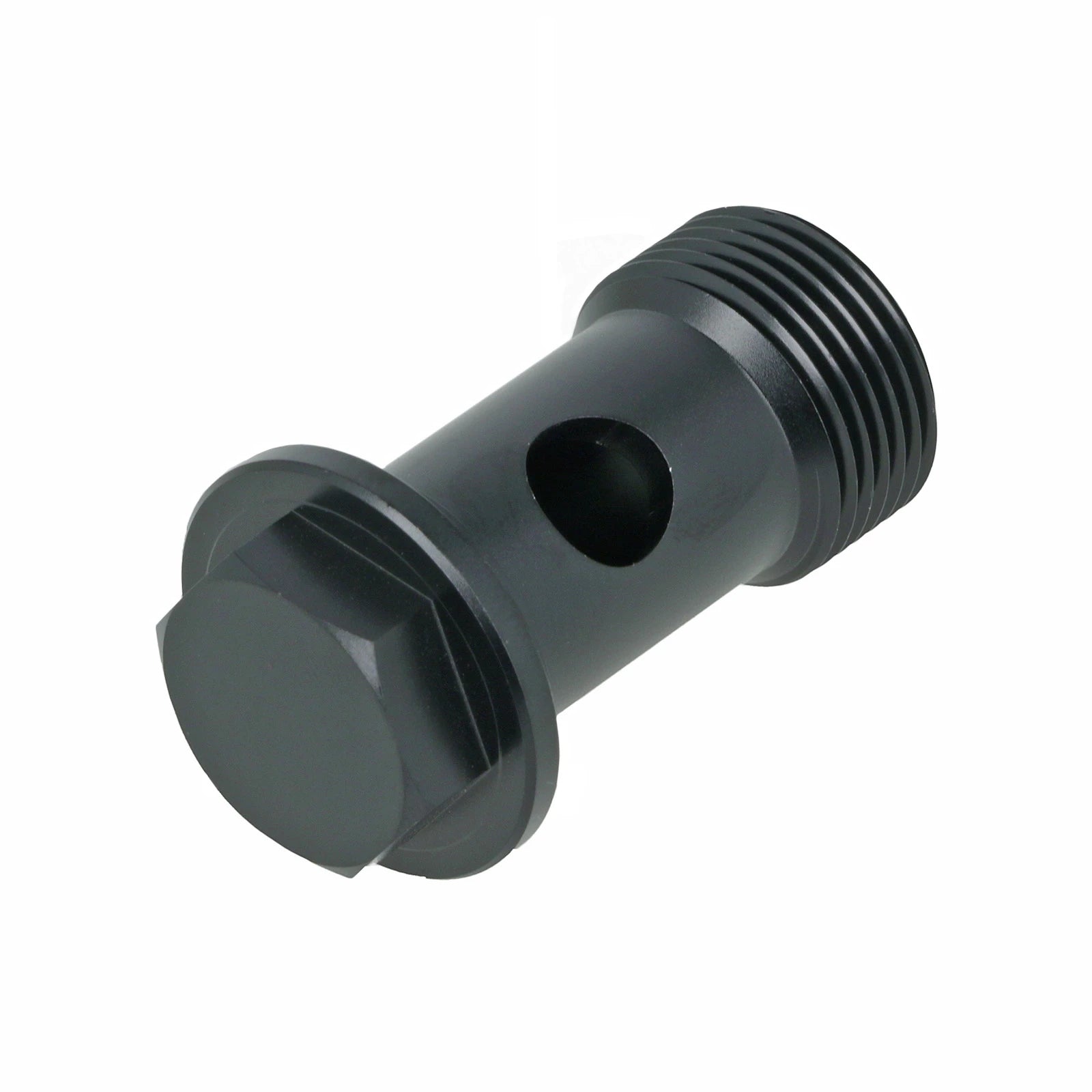

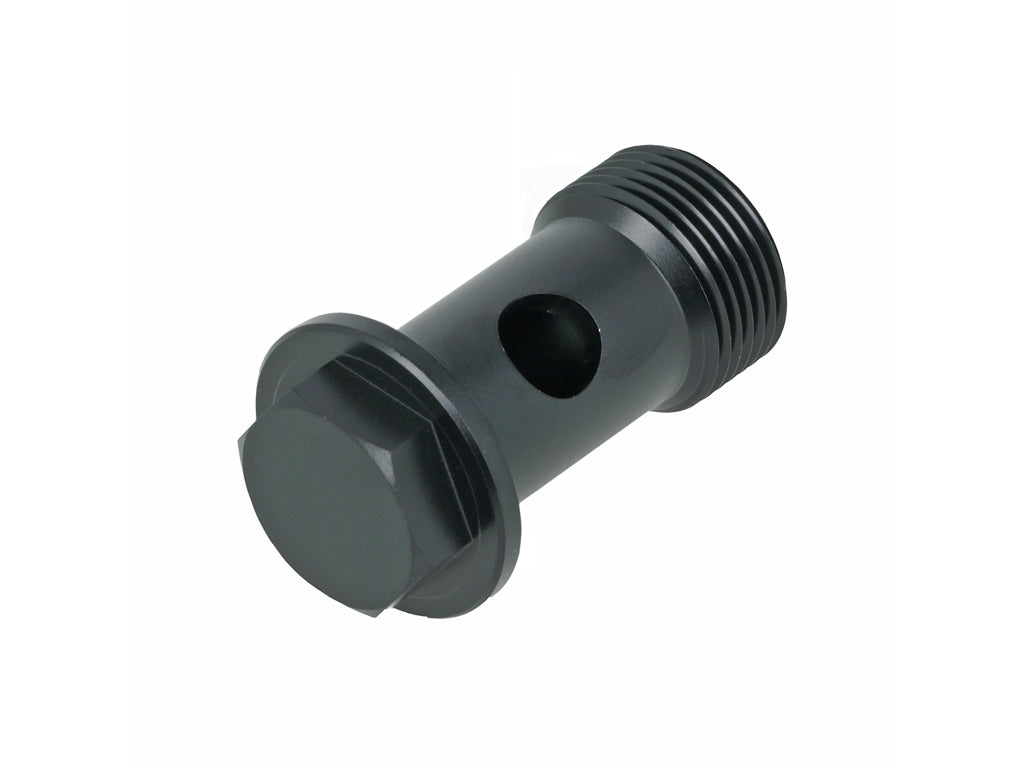

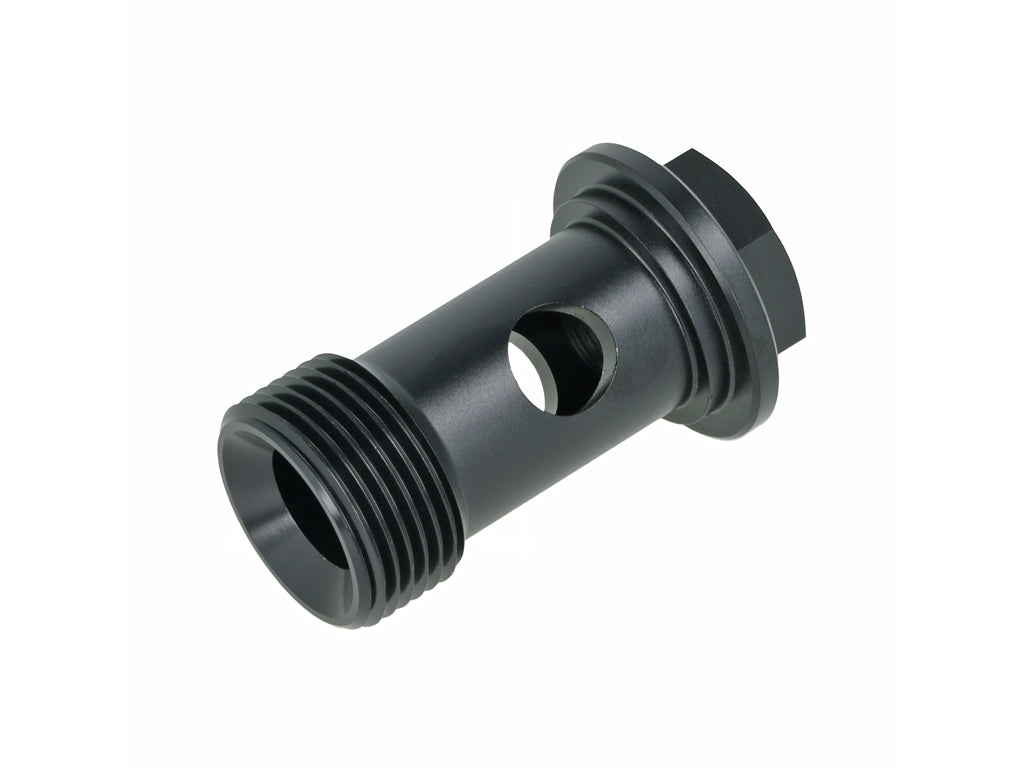

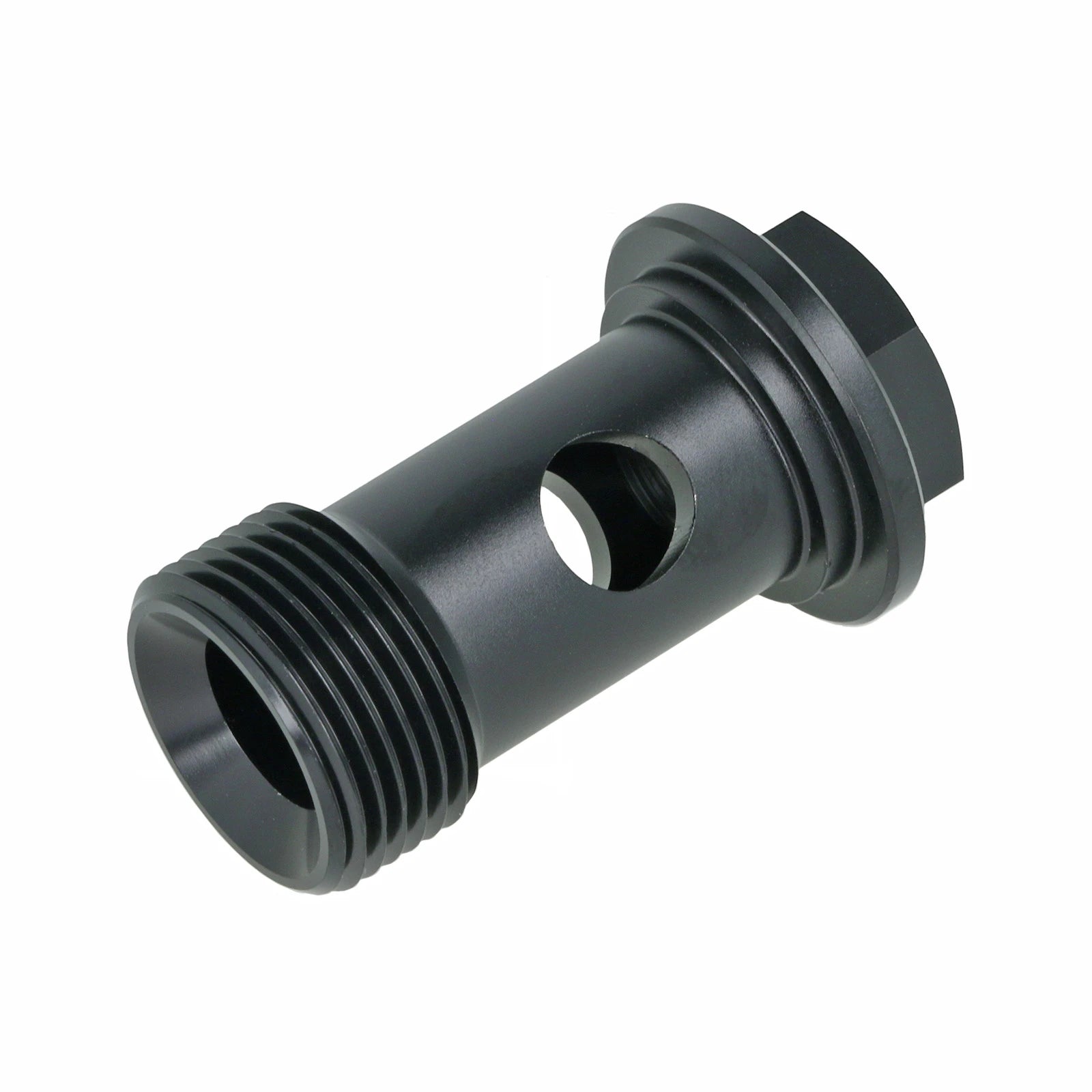

BOOST Products banjo bolt M22x1,5mm - black matt

Aluminium banjo bolt M22 x 1,5mm in satin black

High-quality banjo bolt suitable for Setrab oil coolers, E85 fuel and pneumatic systems

Note: The banjo bolt comes WITHOUT sealing rings. These must be purchased separately.

Classic matte black hollow screw for hydraulic lines or pneumatic lines.
Directly fits our M22 eye banjo with -10 AN / Dash 10 external thread (RI-M22D10-BM) and Setrab oil coolers.

Material: Aluminum
Thread: M22x1.5
Wrench Size: 19mm
Total Length: 47mm
Length from Head: 40mm
Color: Black matt

BOOST Products fittings, hoses and thread adapters are suitable for a wide variety of applications such as use on oil, water, and fuel lines and are resistant to E85 and methanol. The fittings and adapters are CNC machined from 6061-T6 Aluminum or stainless steel and conform to U.S. specification AN d JIC industry standards. The matching hydraulic hoses to the fittings are available in different versions (nylon or stainless steel braiding, also with reinforced insert or as PTFE version). The self-sealing system originates from the defense and aerospace industries and has been successfully used in motor sports for decades. Thanks to the unique screw connections, the hoses are tight and pressure-resistant up to 650 bar (depends on size and type) without the need for press tools. All BOOST Products hydraulic hoses were E85 and Methanol resistent. The hose fittings are screwed together with the matching hydraulic hoses.

Generally recommended for turbocharger applications (oil/water lines) is -04 AN / Dash 4 for oil feed lines and -10 AN / Dash 10 for oil return lines. Other hose/pipe systems, such as water or fuel lines are best selected according to the specifications of the existing connections and manufacturers recommendations. Unlike other suppliers, BOOST Products also offers rotatable fittings with the designation "swivel", they are still completely rotatable after assembly. This is essential for easy assembly and often not available from cheap suppliers. We recommend depending on the application to make at least one side rotatable (swivel).
