Thermal Insulation Heat Shield - Starter Kit - 19.5 x 19.5 in
Couldn't load pickup availability
- Vendor BOOST Products
- SKU EX-HI-TH-KIT
Do you have questions about this product?
Weld-On Heat Shield Starter Kit: Stainless Steel Sheet and Ceramic Fiber Insulation

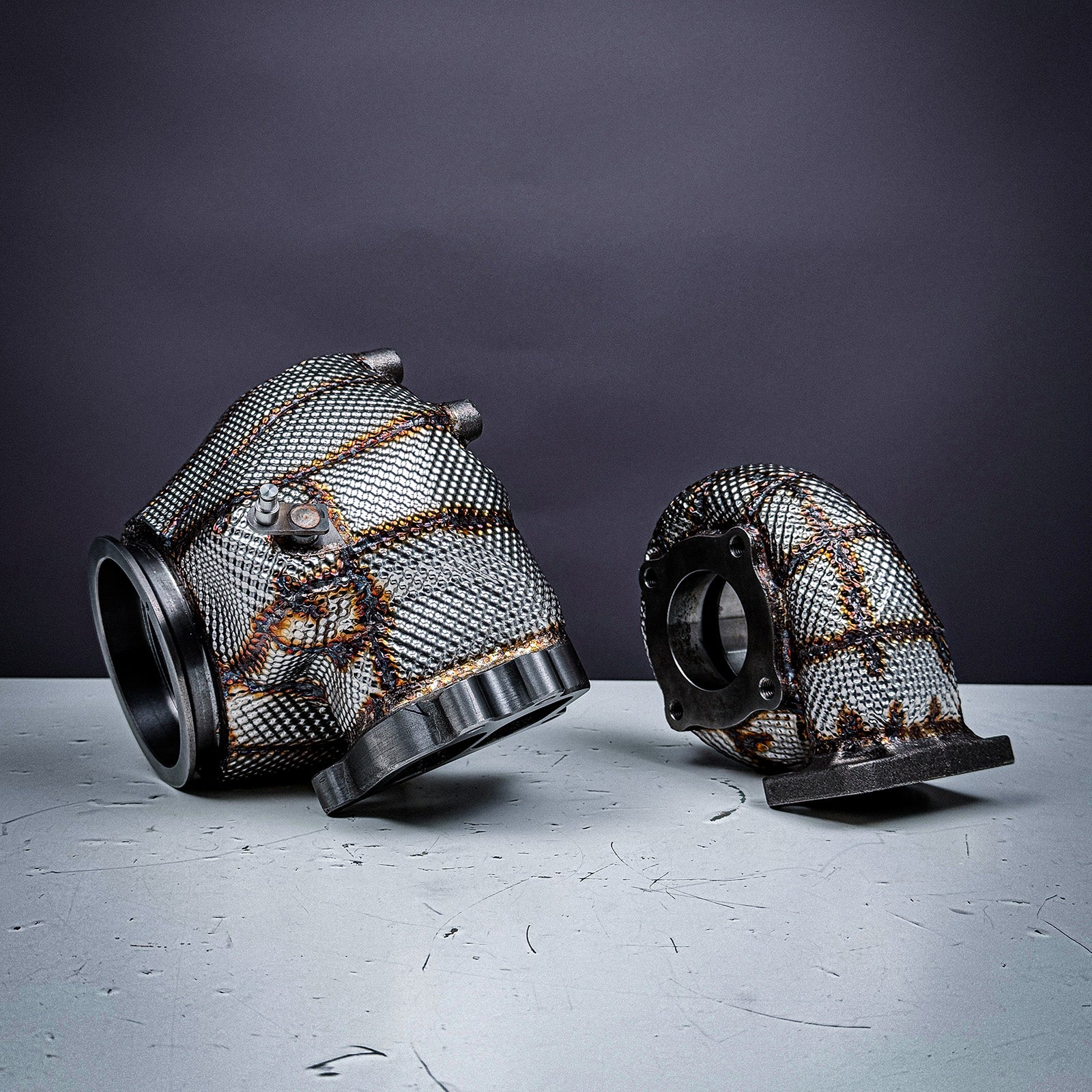

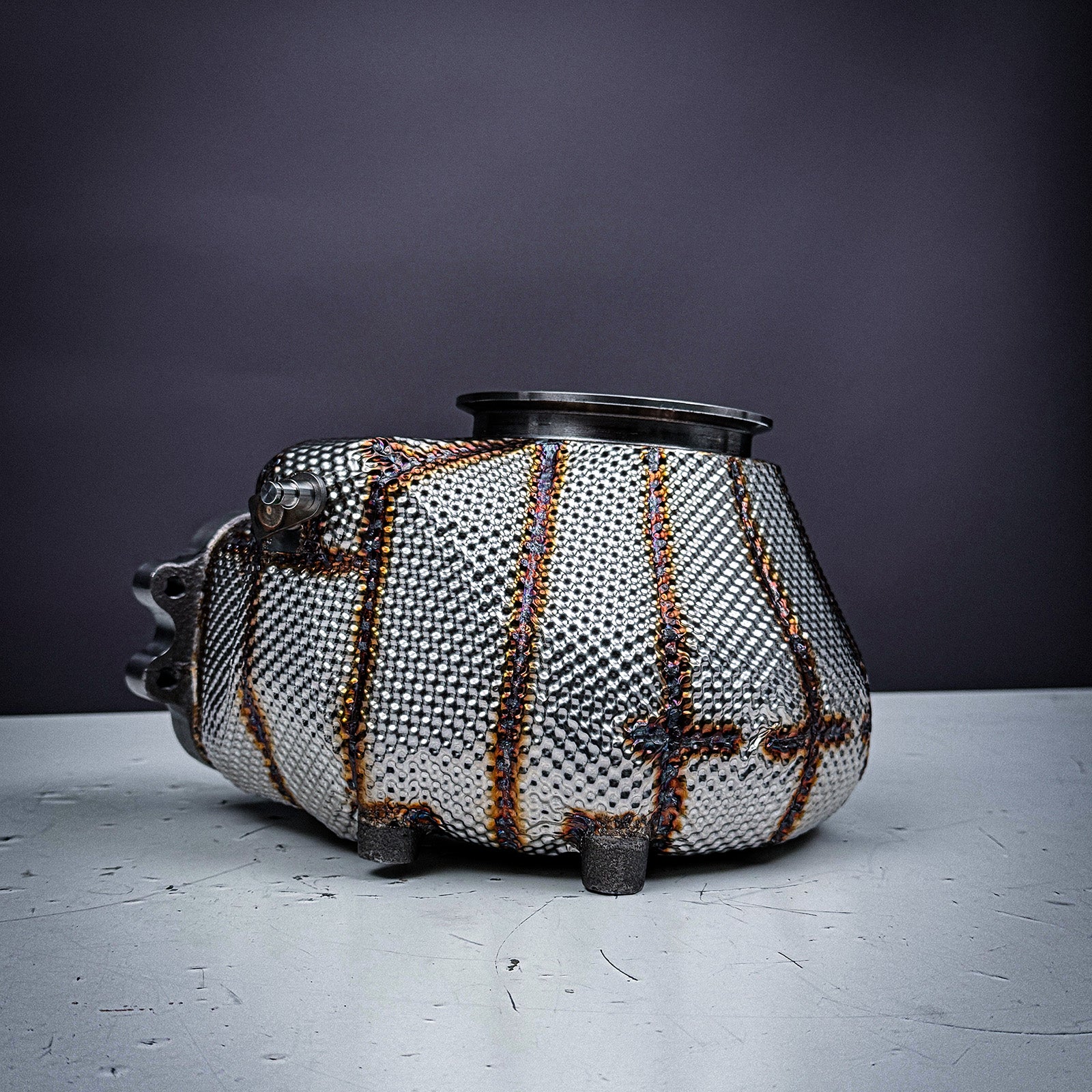

Everything you need for your first custom exhaust heat shield. The Starter Kit pairs one formable stainless steel sheet with one ceramic fiber mat, both 19.5 x 19.5 in (50x50cm). The ceramic fiber insulation goes around the hot part. The stainless sheet covers it and reduces radiant heat. Together they protect nearby wiring, hoses and other heat sensitive components from the heat of headers, exhaust manifolds, turbine housings and downpipes.
What Is in the Kit

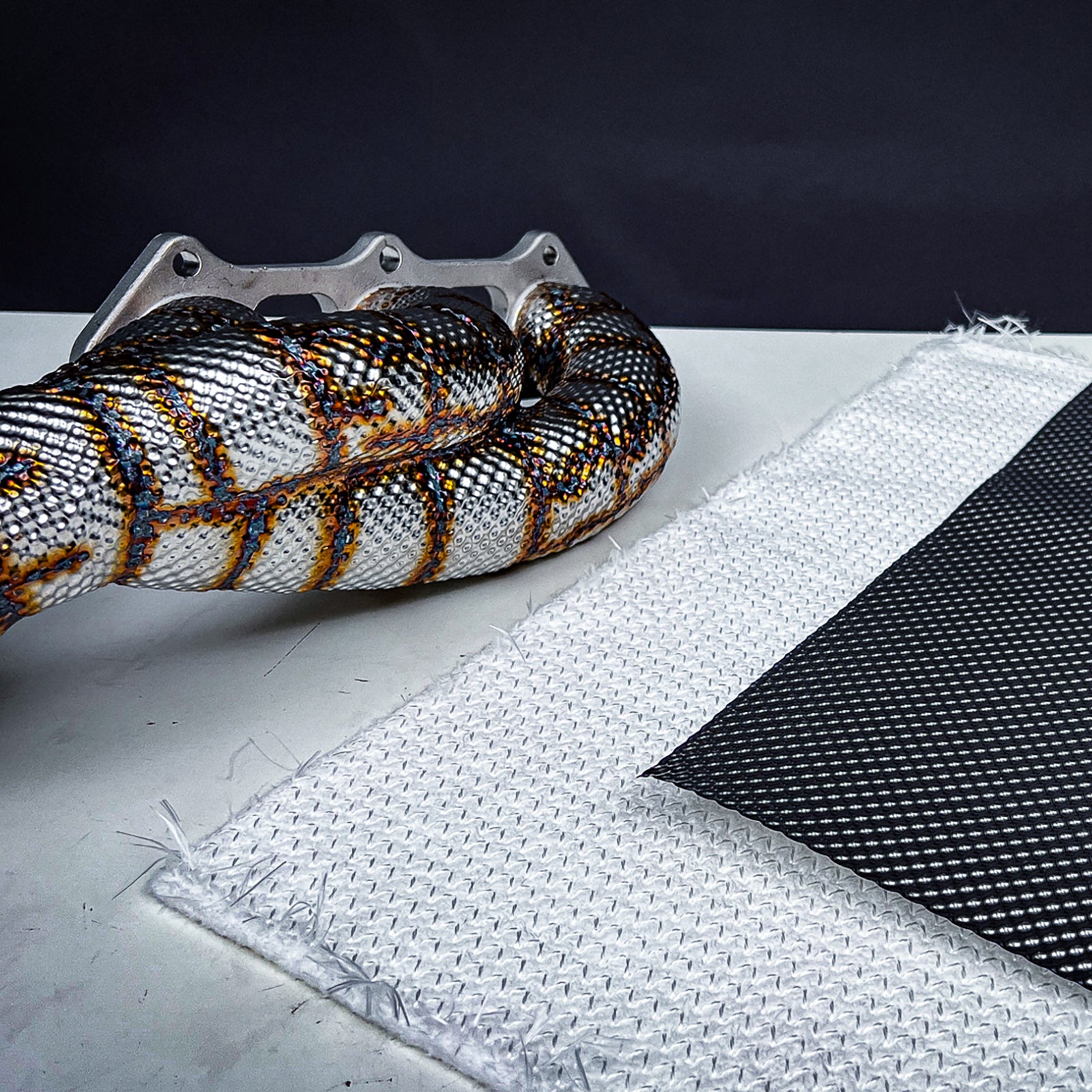

| Component | Material | Size |
|---|---|---|

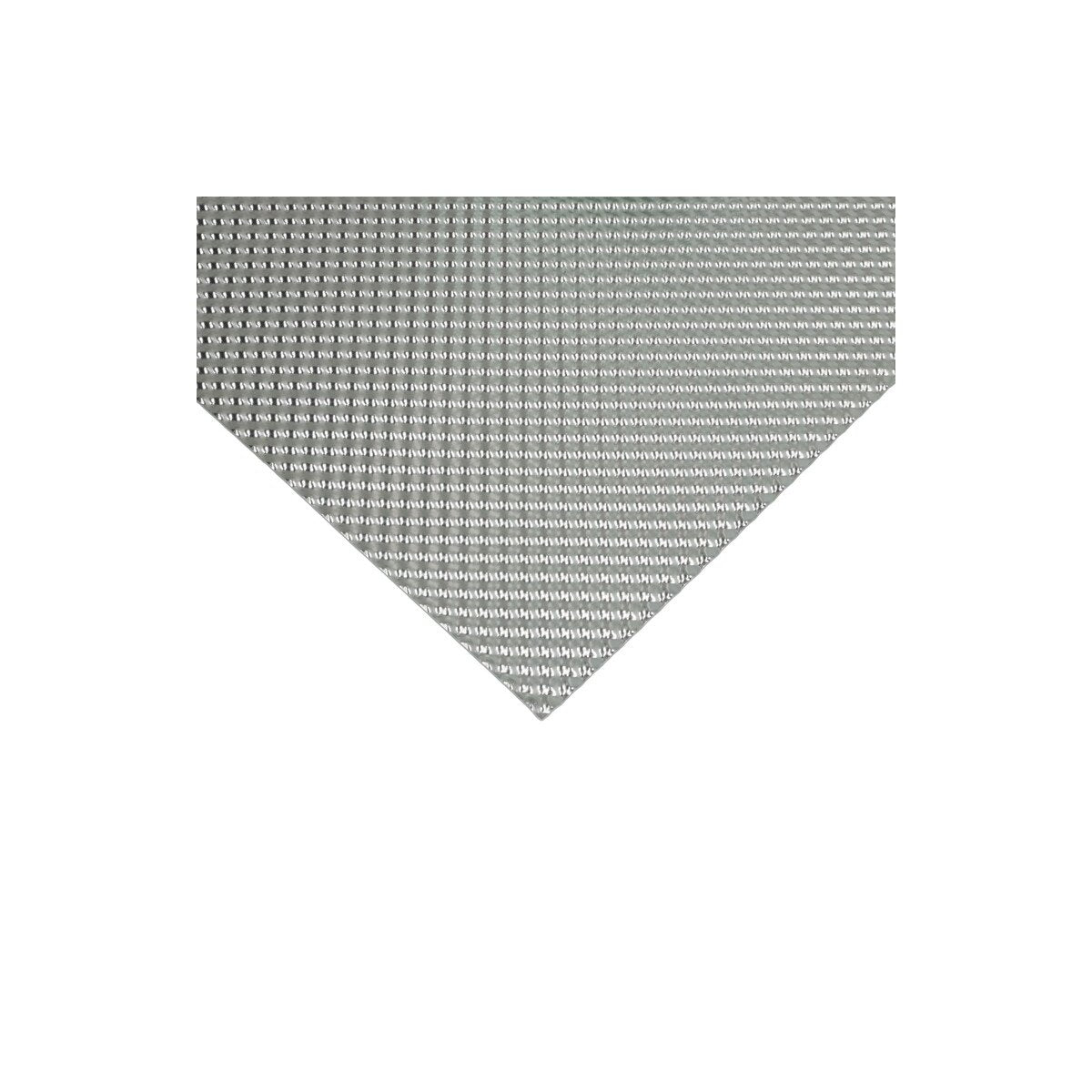

| 1 stainless steel sheet | 1.4828 stainless steel (AISI/SAE 309) | 500 x 500 x 0.1mm (1.5x1.5 ft - 0.004" thin) |
| 1 ceramic fiber mat | Ceramic fiber, self-adhesive backing | 500 x 500 x 5mm (1.5x1.5 ft - 3/16" thick) |
Key Features
- Stainless steel sheet heat resistant up to over 1000°C (1800°F)
- Ceramic fiber mat temperature resistant above 2200 °F / 1200 °C
- Self-adhesive backing on the mat for quick, precise positioning
- Cut both to shape, then spot weld the sheet closed for a custom fit
- Stainless steel sheet manufactured in the EU
Installation
- Cut the ceramic fiber mat to size.

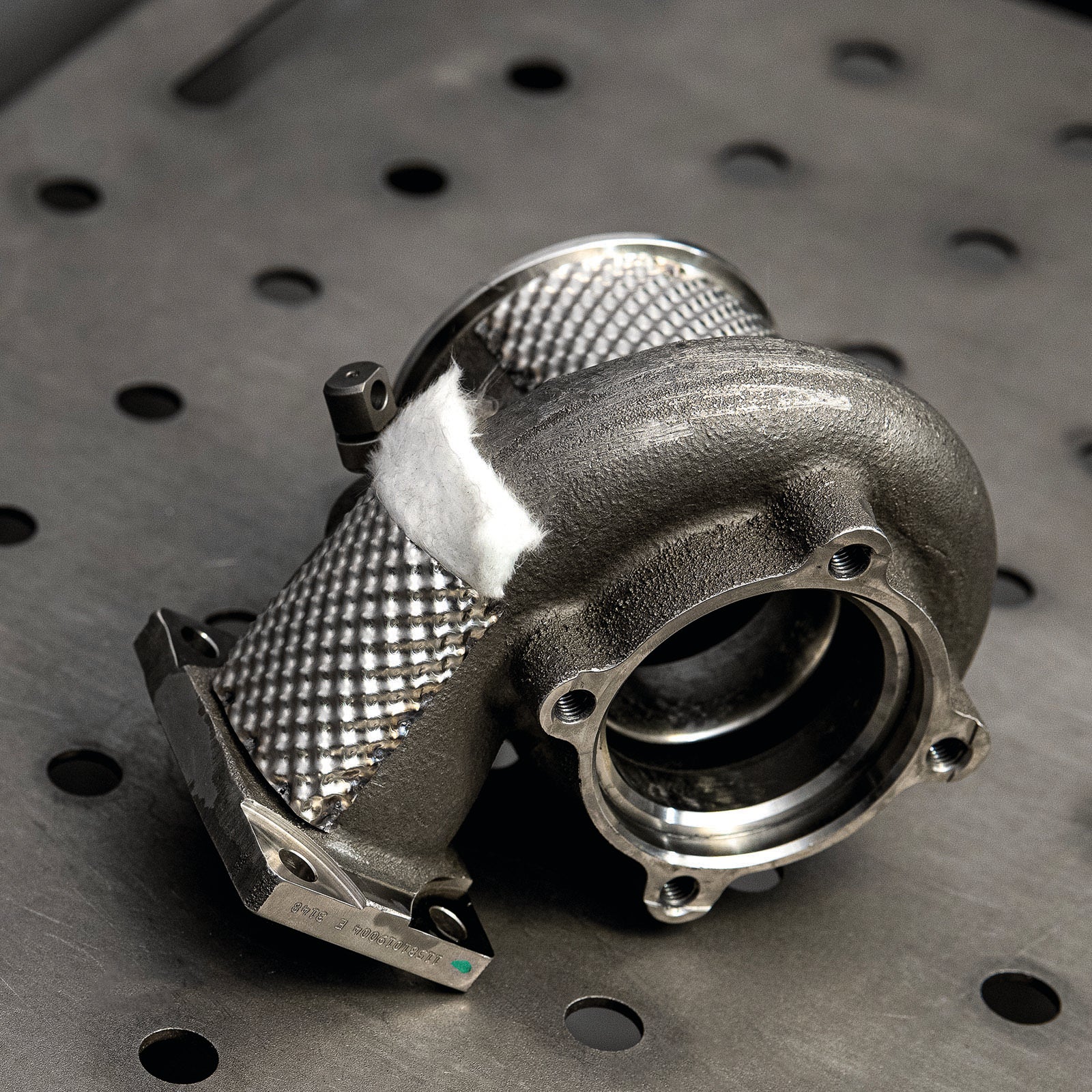

- Remove the backing film and wrap the mat around the component, for example an exhaust manifold pipe.
- Place the stainless steel sheet around the mat.
- Spot weld the sheet closed. A handheld spot welder made for battery tabs is sufficient.
Frequently Asked Questions
How much temperature reduction can I expect?
That depends on the application. The inlet temperature, the length of temperature peaks and the airflow around the part all play a role. If your build has specific targets, measure temperatures under real operating conditions.
Do I have to weld the sheet?
Yes. The kit is designed as a weld-on solution. The stainless sheet is spot welded closed around the insulated part, which keeps the shield permanently in place. A handheld spot welder of the kind made for welding battery tabs does the job. The welder is not included in the kit.
Starter Kit or Pro Kit?
The Starter Kit is meant for a first project or a single component. For larger jobs or several parts, the Pro Kit gives you more material.
Why is the sheet made from 309 stainless steel?
1.4828 (AISI/SAE 309) is a heat resisting grade. It is chosen for its resistance to high temperatures, which is what counts next to a turbo or manifold.
