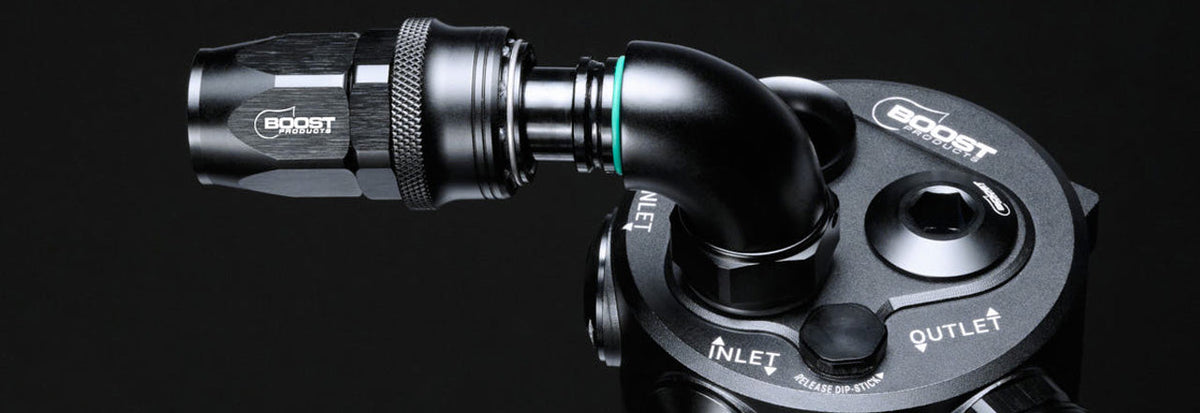

What Are Quick Click AN Fittings?
Quick Click AN fittings are quick-connect couplings designed for hydraulic, fuel, oil, and coolant systems. They allow lines to be connected and disconnected within seconds without the need for any tools. Their compact design and secure locking mechanism make them ideal for motorsport, racing, and service-intensive applications where fast assembly and maintenance are important. They press right on and can be pulled off just as fast.
Why Should I Use Quick Click Fittings for My Hydraulic Lines?
Quick Click fittings come in handy when things need to come off fast. Think of when you're at the racetrack. It would be easier to replace a damaged oil cooler by just clicking off the connections instead of wrenching them off with a spanner.
Quick click fittings are popular in high level motorsport because of this exact reason. These can connect and disconnect within a few simple seconds. In the pits, it makes things much simpler and quicker than taking the time to unscrew traditional AN fittings - especially when things have to come out multiple times in a race weekend. For race cars and performance vehicles, they provide a practical solution where quick access and reliability are essential.
What Is the Difference Between Quick Click and Dry Break Fittings?
Both systems allow quick disconnection of fluid lines, but they serve different purposes.
Quick click fittings focus on a fast and convenient connection and disconnection. If you need to disconnect something, the fluid will still come out, so depending on the system, you may need to drain it first. But these fittings are really for quick maintenance and convenience.
Dry break fittings are a little more serious. They include internal shut-off valves which automatically close when disconnected, preventing fluid loss and air from entering the system. For example, if you want to replace brake calipers due to damage, you could disconnect the fitting without having to re-bleed the new calipers you put on. That's the beauty of a dry break fitting. Apply this idea to anything that needs to be bled when taken out and reinstalled - power steering, radiators, coolers, etc.
However, because of this additional sealing mechanism, the dry break fittings are typically more complex, heavier, and more expensive than the Quick click fittings.
Are Quick Click Fittings Restricting the Flow?
High-quality Quick Click fittings are designed to minimize flow restriction.
While every connection creates a small change in the flow characteristics, properly engineered fittings maintain an excellent flow performance and are suitable for high-performance applications. The actual impact depends on the fitting size, internal geometry, and the overall system design.
To answer your question though, they should not restrict the flow of any fluids at all!
How leak-proof are these fittings?
You don't have to worry about leaks with these fittings. The male end of the connection will always have an o-ring that seals the female end of the quick click when pressed on. These o-rings are replaceable in case you end up tearing one, but the ones we provide are quite strong and made of great quality. We don't recommend using these for high pressure systems, as they are not rated for extremely high pressures.
How Good are BOOST Quick Click AN Fittings?
BOOST Products Quick Click fittings are engineered for high flow capacity, secure locking, and longterm durability. Manufactured from high-quality materials and designed for demanding motorsport and performance applications, they provide a reliable operation even under high pressure and vibration. Their precision-machined construction ensures easy handling, secure engagement, and excellent flow characteristics. That making them an ideal solution for professional builds and high-performance projects.
